Ewuaqua rainwater manager 42020 230 V, compact, for Regenwasser utilization system
Short notice delivery
delivery time: 10-28 working days
Shipping Cost Points: 500
Part Number: 42020
Details

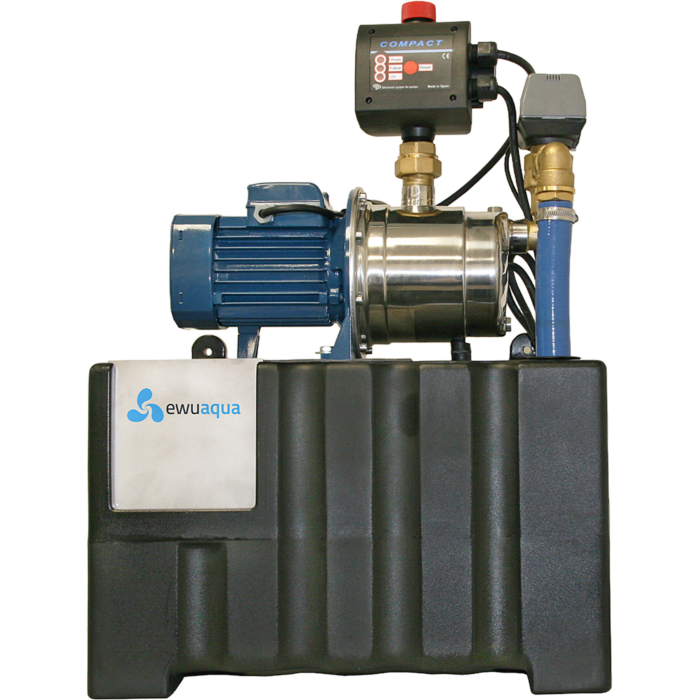

Ewuaqua rainwater manager 42020
- without cover
- with in-house and demand-oriented drinking water replenishment according to DIN EN 1717
- with self-priming centrifugal pump and automatic pump switch for pressure-dependent, flow-dependent switch-off and dry-run protection with drinking water replenishment in the feed tank with free outlet in accordance with DIN EN 13077 type AB
- with motor-driven switching valve (zone valve) for safe switching of the supply with rain or drinking water
- which is controlled by a float switch a) Rainwater manager consisting of: multi-stage and self-priming centrifugal pump with safety plug (plug and play)
- Manometer pump switch with match0
- Check valve and shock absorber
- Feed container made of MDPE (24 liters nominal volume and 7 liters usable volume) with free outlet
- Type AB according to DIN EN 13077 and mechanical
- proportionally controlled float valve (KTW / DVGW-W270 certification)
- Float switch with 20 m connection cable and adjustment weight
- motor-controlled changeover valve 2000 "(zone valve)
- Drinking water refill valve DN 13 (KTW / DVGW-W270 certification) b) Wall bracket with fastening material c) Connection 2000 consisting of: match3 x reinforced hose 3/4 "300 mm with seal (KTW approval)
- 2000 x brass ball valve 3/4 "(KTW approval) Maximum delivery height (Hmax) 52 m
- Maximum flow rate (Qmax) 4
- 8 m3 / h
- System height max. 30 m
- 2000
- 5 to 3
- 5 bar adjustable
- 1930 off pressure <match2
- 8 liters / min
- IP X4 (motor)
- multistage centrifugal pump
- self priming
- Voltage 230 V / 50 Hz
- Rated current 3
- 9 A
- Motor power P1 880 W.
- Motor power P2 550 W
Downloads (1)
Product Safety
Manufacturer
iWater Wassertechnik GmbH & Co. KG
E-Mail
info@iwater.de
Address
Gewerbestraße 6
53567 Asbach (Westerwald)
Germany
