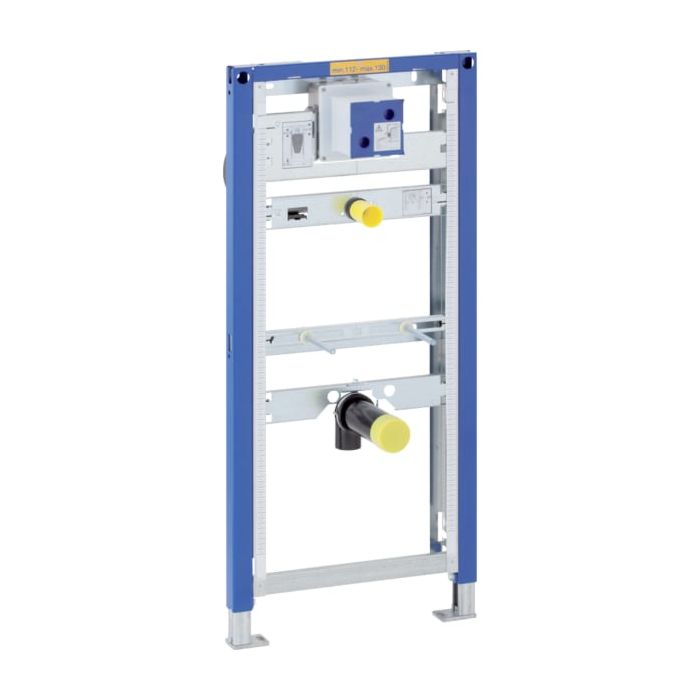

Geberit Duofix urinal element Universal Overall height: 112 - 130 cm

Geberit Duofix urinal Universal 112-130cm for urinal control. from 2009 Application - For installation in part height or room height Bâti-supports - For installation in room high installation wall - For installation in Duofix system wall - Suitable for floor construction 1930 -20cm - For holding the HyTronic urinal controls contactless IR or HyTouch urinal hand releases pneumatic from year 2009 Features - Dry component - Self-supporting - Rahmen powder coated, color Geberit blue - Rahmen with holes D 9 mm for fixing in wooden stand construction - Attachment for urinal with threaded rod M8, height and distance adjustable - Foot rests with cm-raster marking, non-slip, height adjustable, galvanized - Rotatable base plate , for installation in UW50 and UW75 profiles - trusses with center mark, tool-free adjustable - no stagnation water through guide for flushing hose - attachment for inlet D32mm height adjustable - attachment for Universal arch soundproofed and height adjustable - Universal kit for Geberit urinal control - abs Valve preassembled with throttle - Water connection right - Water connection can be mounted without tools - Inspection opening 10.5 x 10.5 cm - Protection for tools can be cut to length without tools Scope of delivery - Installation box incl. Filter , shut-off and throttle Filter , electrical connection terminal - Universal water connection bracket R1 / 2 "(MeplaFix compatible ) - Protection with cover - Urinal connection set with suction siphon JetEX - Flexible flushing connection to the inlet - PE outlet bend D50 / 63mm - Rubber seal D57 / 50 mm - 2 threaded rods M8 for urinal attachment - Flushing valve - mounting Geberit : Geberit Type: Duofix Art : 111.616 .00.1 Please order assembly kit separately: # 111815001
