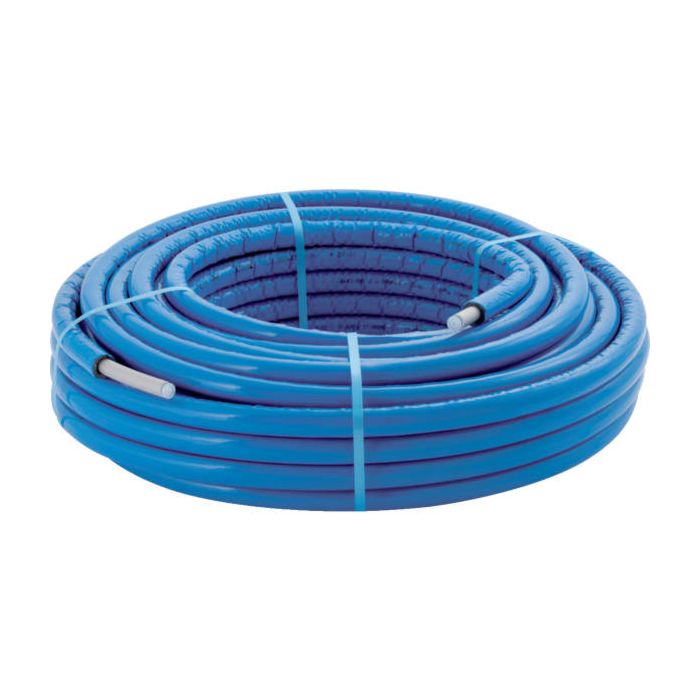

Geberit FlowFit system pipe ML, round pre-insulated 13mm 619142002 roll goods d25, L:25m blue from 2024

Geberit FlowFit system pipe ML, round pre-insulated 13mm 619142002

diffusion-tight media pipe

Pipe end with transparent protective plugTechnical propertiesMaterial: PE-RT II / Al / PE-RT II

Surface roughness (µm): 7 µm

Thermal expansion (mm/(m·K)): 1930 ,026 mm/(m·K)

Thermal conductivity pipe (W/(m·K)): 1930 ,41 W/(m·K)

Insulation material: PE soft foam

Thermal conductivity insulation (W/(m·K)): 1930 ,04 W/(m·K)

Water vapor diffusion resistance outer skin insulation (µ): 7000 µ

DN / nominal diameter: 20

d, ø / outer diameter (mm): 25 mm

Insulation (mm): 13 mm

di, ø / inner diameter (mm): 20 mm

D / Outer diameter (cm): 5, 2000 cm

s1 / Wall thickness (mm): 13 mm

s / Wall thickness (mm): 2.5 mm

L / Length (m): 25 m
