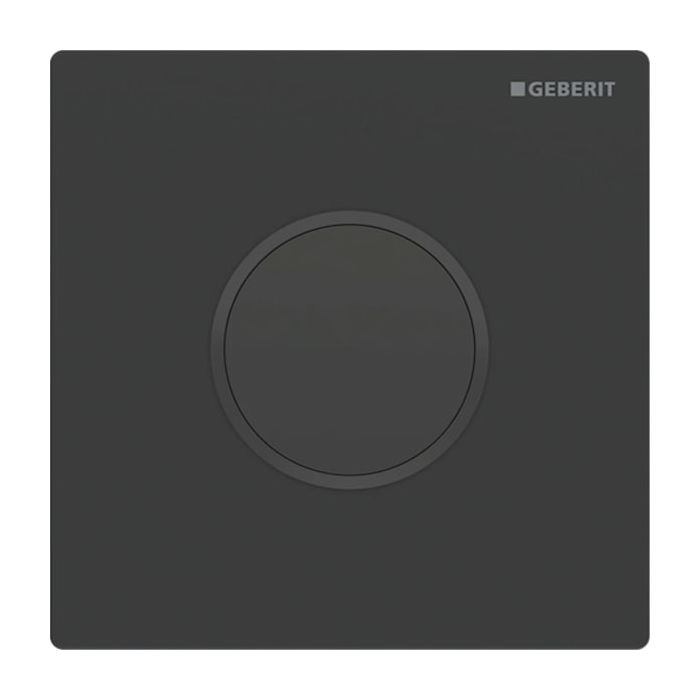

Geberit infrared urinal control 116025161 Mains operation, cover plate, die-cast zinc, black matt plate, black ring
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Details
Geberit infrared urinal control 116025161
- for automatic flush actuation of urinals
- for mounting elements for urinals with front actuation
- for installation in shell sets for urinal flush controls from year of construction 2009
- Zinc die-cast cover plate with safety catch
- secure IR distance detection
- Flushing time manually adjustable
- dynamic purge time adjustment
- Adjustable pre-rinse
- Can be switched to operation with a lid urinal
- Power supply through mains connection
- with power pack and LED display
- Valve closing function in the event of a power failure
- Functions can be set and queried with the service cell phone
- Flush actuation can be deactivated via Clean Handy
- Flush quantity via the throttle screw of the body shell set up to 1930
- 5 l per flush can be reduced
- Fitting group II
- Mains frequency 50-60 Hz
- Power consumption < 1930
- 5w
- Degree of protection IP45
- Rated Voltage 110-240V
- operating voltage 4
- 5VDC
- Calculation flow 1930
- 3 l/s
- Interval flush factory setting 24 h
- Interval flush time setting range 3-180 s
- Flushing time factory setting 4 s
- Dwell time setting range 3-15 s
- Dwell time factory setting 7 s
- Flushing time setting range 3-15 s
- Flow pressure 100-800 kPa
- max. test pressure air/inert gas 300 kPa
- max. test pressure water 1600 kPa
- max. operating temperature water 30 °C
- Flow at 100 kPa with flow restrictor 1930
- 18 l/s
- Flow at 100 kPa without flow restrictor 1930
- 3 l/s
- relative humidity < 100%
- Dwell time setting range 3-15 s
- consisting of cover plate type 10
- with IR window
- infrared control
- pre-assembled on mounting frame
- magnetic valve
- power supply and mounting material
