Geberit infrared urinal control 116025KH1 mains operation, cover plate, die-cast zinc, high-gloss chrome / matt chrome
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Details

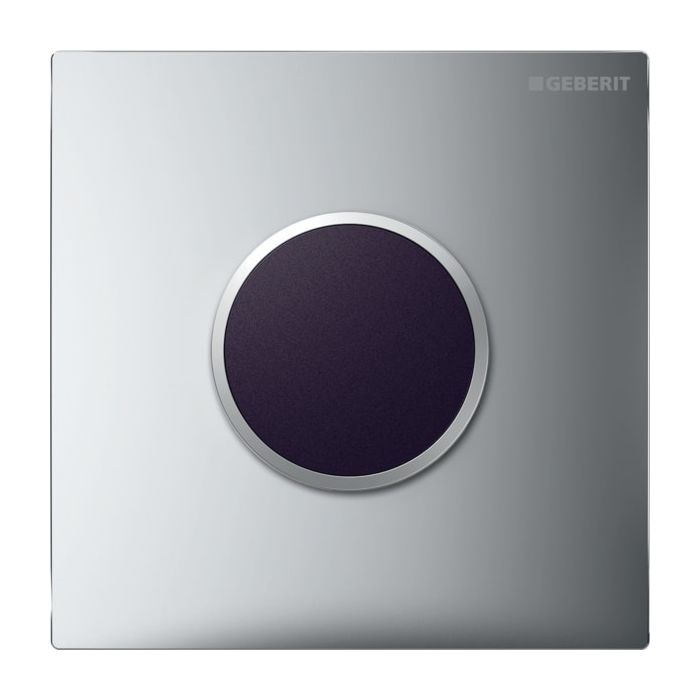

Geberit infrared urinal control 116025KH1
- for automatic flushing of urinals
- for mounting elements for urinal with front actuation
- for installation in body-in-white sets for urinal controls from 2009
- Die-cast zinc cover plate with safety catch
- safe IR distance detection
- Rinse time can be set manually
- dynamic rinse time adjustment
- Pre-rinse adjustable
- convertible to operation with lid urinal
- Power supply through mains connection
- with power supply and LED display
- Valve closing function in the event of a power failure
- Functions can be set and queried with a service cell phone
- Rinse triggering can be deactivated using a clean cell phone
- Flush volume via throttle screw of the basic set up to 1930
- 5 l per flush can be reduced
- Faucet group II
- Mains frequency 50 - 60 Hz
- Power consumption < 1930
- 5 W.
- Degree of protection IP45
- Nominal voltage 110-240 V.
- Operating voltage 4
- 5 V DC
- Calculation 1930
- 3 l / s
- Interval rinse factory setting 24 h
- Interval rinsing time setting range 3 - 180 s
- Rinsing time factory setting 4 s
- Dwell time setting range 3 - 15 s
- Dwell time factory setting 7 s
- Rinsing time setting range 3 - 15 s
- Flow pressure 100 - 800 kPa
- Max. Test pressure air / inert gas 300 kPa
- Max. Test pressure water 1600 kPa
- Max. Operating temperature water 30 ° C
- Flow at 100 kPa with flow 1930
- 18 l / s
- Flow at 100 kPa without flow 1930
- 3 l / s
- relative humidity <100%
- Dwell time setting range 3 - 15 s
- consisting of cover plate Sigma10
- with IR window
- Infrared control
- pre-assembled on mounting frame
- magnetic valve
- Power supply and fastening material
