Geberit Concealed urinal control 116086001 electronic, mains operation, concealed

Geberit concealed urinal control 116086001

• for automatic flushing of urinals
• for concealed flushing of urinals
• for installation in elements for urinals with urinal control for concealed installation
• for installation in rough-in sets for urinal controls (from model year 2009)
• for urinal installations with inlet from the back and outlet to the back
• power supply via mains connection
• integrated power supply with LED display
• control with LED display
• compatible with Control App
• Function statistics available via Control App
• flushing time adjustable
• interval flushing adjustable
• dynamic flushing time adjustment
• water-saving hybrid mode adjustable
• ready for use after connection to the mains
• one-time flush after activating the power supply
• Flushing volume via throttle screw of the body kit up to 1930
• 5 l per flush can be reduced
• vandal-proof
• power outage control
• valve closing function in case of power failure
• with overflow protection in case of blockage of the odor trap
• Brightness sensor to deactivate the control when the urinal is dismantled

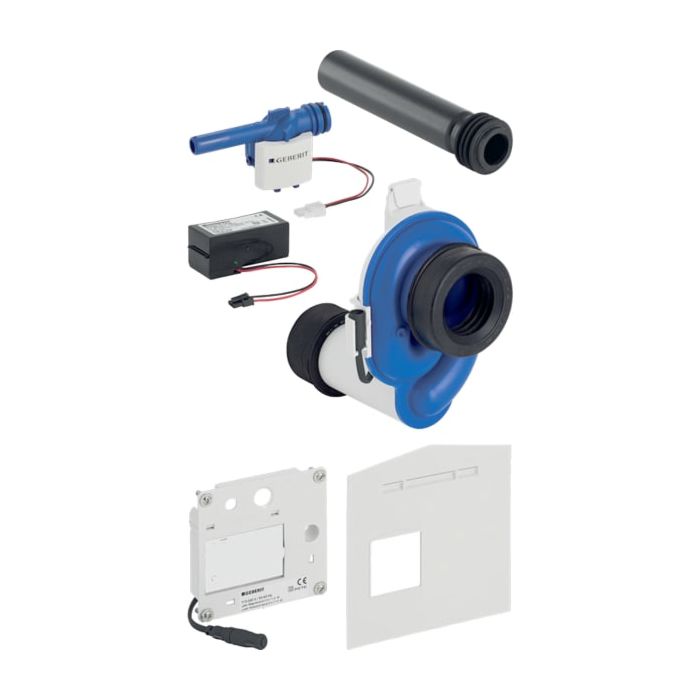

• with control electronics
• urinal odor trap with sensor
• splash guard
• solenoid valve
• power supply
• fastening material
