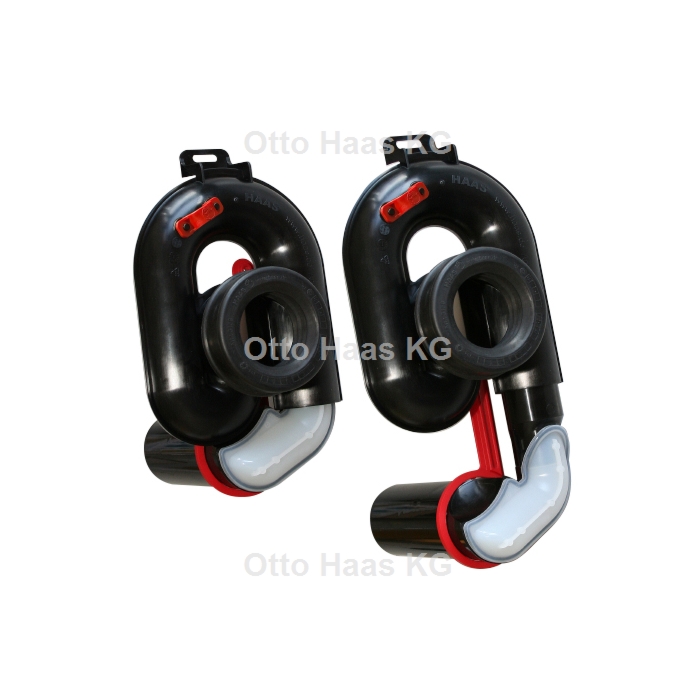

HAAS urinal suction siphon 6000

  • Max. flow rate 1930 .6 l/s or 36 l/min
  • Inlet suitable for Bathroom ceramics connections Ø 50 mm +/- 2 mm
  • Drain pipe Ø 50 mm suitable for HT pipe DN 50 sleeve
  • recommended height of 80 mm (from the middle of the inlet to the middle of the outlet)
  • Minimum height 65 mm (from the middle of the inlet to the middle of the outlet)
  • maximum height 130 mm (from the middle of the inlet to the middle of the outlet)
  • according to DIN 1380:2001-05 and DIN 195451:2004-12
  • EPDM seal, resistant to aging and weather
  • according to DIN EN 681- 2000
