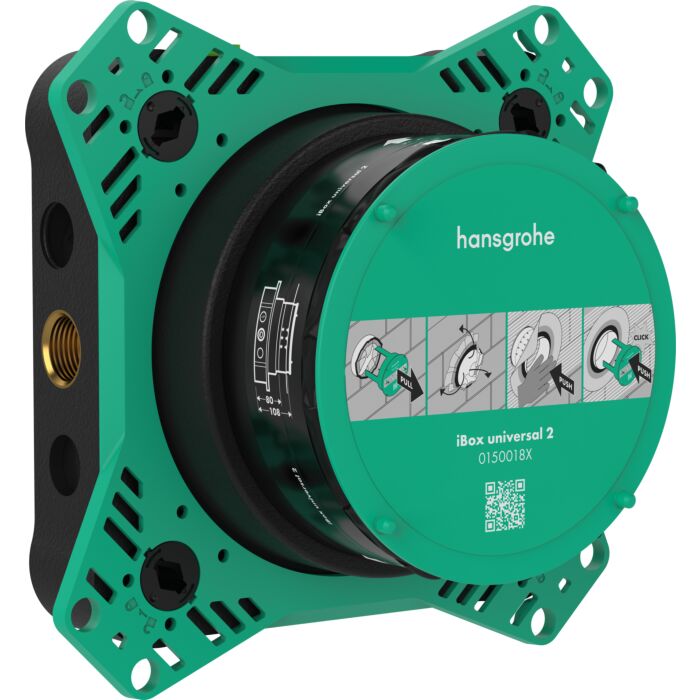

hansgrohe iBox universal 2 basic body 01500180 for all new Brausen , bath and thermostat finish sets flush-mounted

hansgrohe iBox universal 2 base body 01500180

• Suitable for all new Brausen , bathtub and thermostat finish sets for concealed installation
• Material: low-dezincification brass, EPP foam, heat and sound insulating
• Connection thread Rp ½
• Connection size: DN15
• rotationally symmetrical assembly
• Sound-insulated installation
• flexible mounting ring for different mounting situations
• Mounting ring adjustable in 5 mm increments
• Mounting ring suitable for the Plumbing on the front and back
• No shortening necessary thanks to the sliding sleeve
• Support aid for the spirit level
• Integrated spirit level for correct horizontal and vertical alignment
• Sealing sleeve permanently attached
• Power supply: M16 flexible empty pipe
• Minimum installation depth: 80 mm
• Maximum installation depth: 108 mm
• The adapter plate #13588000 is required to assemble old prefabricated sets (see accessories)
