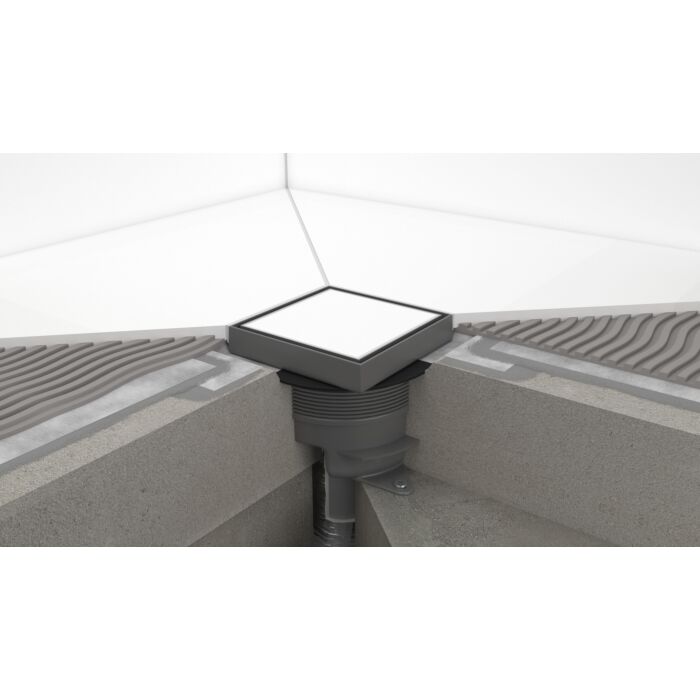

hansgrohe Complete set point drain RainDrain Spot Plus 56226800 150x150 mm, height adjustable, can be tiled on the back

hansgrohe Complete set point drain RainDrain Spot Plus 56226800

• consists of: design cover, base body, siphon, factory-preassembled sealing fleece, construction protection cap
• Material quality cover: stainless steel V2A ( 2000 .4301)
• pre-assembled sealing membrane
• Sealing water height: 50 mm
• Nominal diameter connection: DN40
• Direction of outlet: pre-assembled horizontally, can be used vertically
• easy-to-clean surface
• height adjustable by 10 mm
• up to 35 l/min drainage capacity
• Application area: New construction, renovation
• removable odor trap
• rotatable and adjustable siphon housing
• easy-to-clean siphon
• Type of odor trap: liquid
• minimum height 95 mm
• Material siphon: ABS
• Installation type: free in the room
• tiled on the back
• Depth of the tile recess: 12 mm
