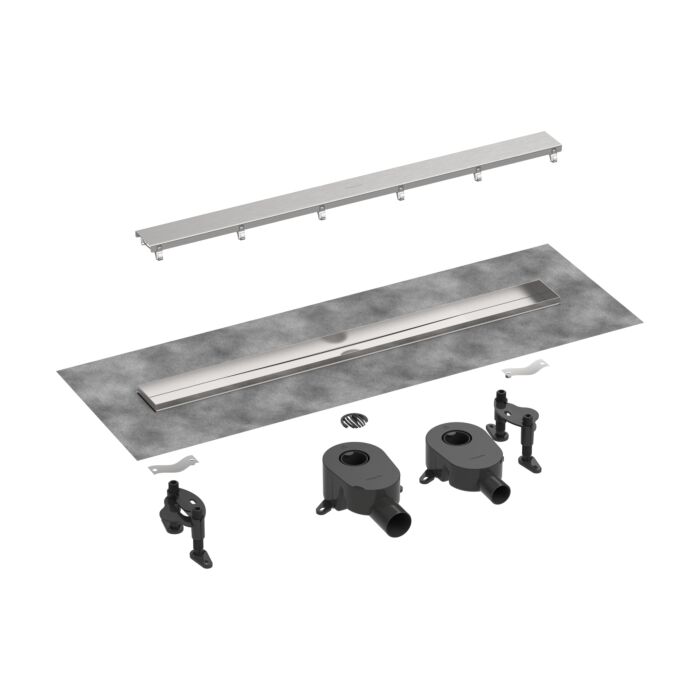

hansgrohe RainDrain Go 900 Complete set DR 900 56274670 rear tiled stand/flat installation MSW

hansgrohe RainDrain Go 900 Complete set DR 900 56274670

• rear tiling stand/flat installation MSW
• consists of: Finished set shower channel, siphons, installation set, factory pre-assembled sealing fleece, cover lifter, hair trap
• Material quality cover: stainless steel V2A ( 2000 .4301)
• Material installation set: stainless steel V2A ( 2000 .4301)
• pre-assembled sealing membrane
• Sealing water height: 30 mm, 50 mm
• Nominal diameter connection: DN40, DN50
• Direction of outlet: horizontal
• Height adjustable by 15 mm
• Drainage capacity flat Plumbing : up to 31 l/min
• Drainage capacity standard installation: up to 39 l/min
• Tile thickness: up to 11 mm
• Rotatable and adjustable siphon housing
• can be tiled on the back
• Depth of the tile recess: 12 mm
