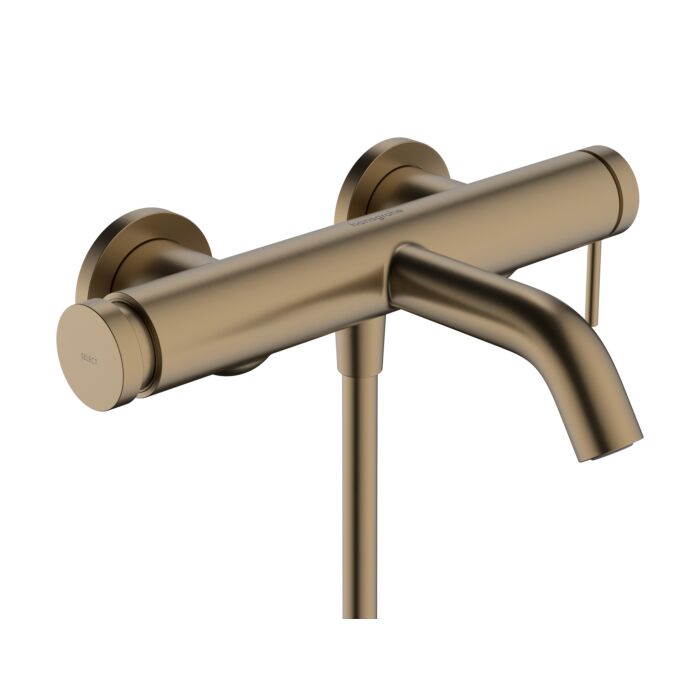

hansgrohe Tecturis S bath mixer 73422140

  • 2 Verbraucher
  • Projection 209 mm
  • Pitch 150 ± 12 mm
  • Jet type fitting normal jet
  • Flow rate for bath inlet at 3 bar 19 l/min
  • Flow rate for hand shower at 3 bar 14
  • 7 l/min
  • Ceramic mixing system
  • Temperature limit adjustable
  • Pressure switch Select with automatic reset
  • intrinsically safe against backflow
  • according to DIN EN 1717
  • with silencer
  • suitable for Durchlauferhitzer
  • Connection size DN 15
  • Connection type S-connectors
  • Min. operating pressure 2000 bar
  • Max. operating pressure 10 bar
