Heimeier differential Heimeier overflow valve 5503-03.000 DN 20, flat-sealing screw connection, gunmetal
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Details

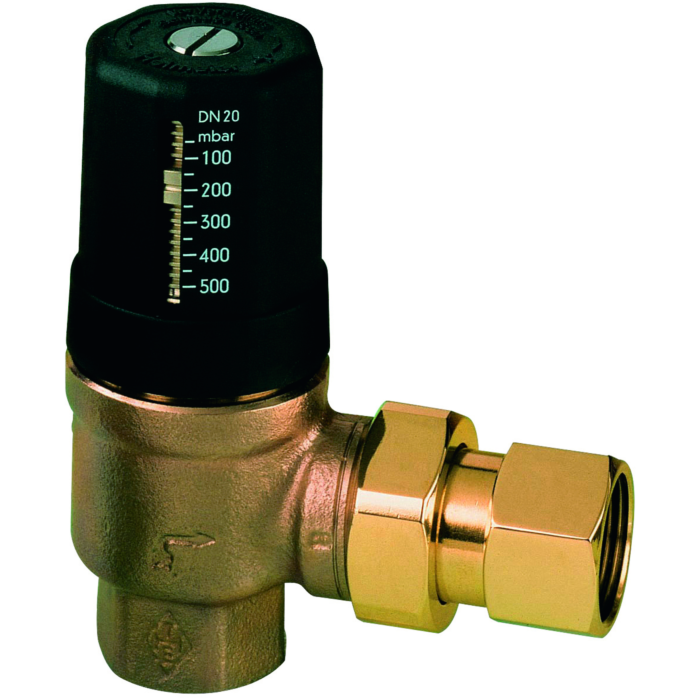

Heimeier differential pressure relief valve 5503-03.000
- Differential pressure relief valve with directly readable setting value
- proportionally operating differential pressure controlled overflow valve with low proportional deviation
- Housing made of corrosion-resistant gunmetal with threads according to DIN 2999
- directly readable setting scale
- highest response accuracy due to internal
- Generously dimensioned setpoint spring made of stainless steel
- Low-friction central guide for the valve disc
- Stepless adjustment secured against unauthorized adjustment
- Setting range 50-500 mbar
- Adjusted at the factory and preset to 200 mbar
- Versions DN 20-32
- Connections on the input side IG
- IG or flat-sealing screw connection on the outlet side
- permissible operating temperature TB 120 ° C
- permissible operating pressure PB 10 bar (PN 16)
