Heimeier Multibox individual room control 9304-00.800 UP, with return temperature limiter, white
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 118
Part Number: 930400800
Details

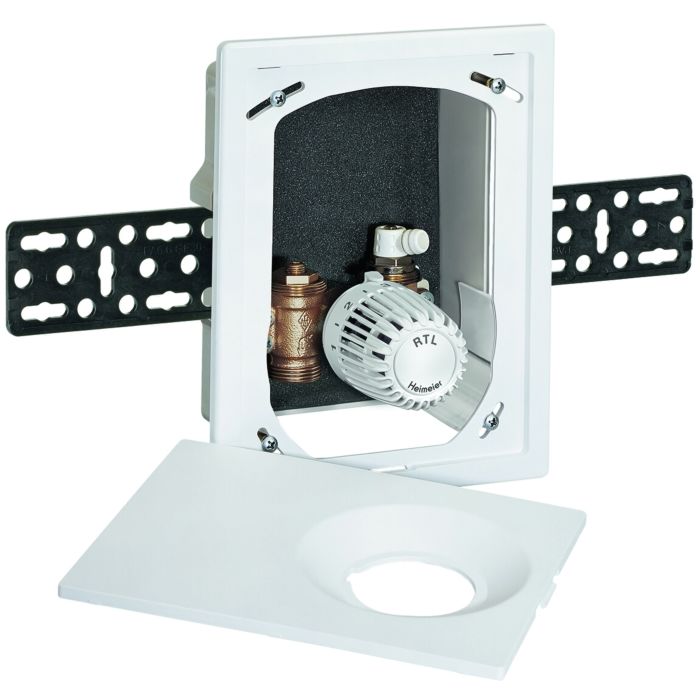

Heimeier Multibox individual room control 9304-00.800
- is used for the decentralized control of underfloor heating
- Maximum limitation of the return temperature
- preset
- shut-off and venting
- for underfloor heating
- wall heaters
- combined floor-radiator heating systems
- Housing DN 15
- the depth of the flush-mounted box is 60 mm
- flexible installation thanks to variable distance between flush-mounted box and cover of up to 30 mm
- the cover can compensate for an inclined installation of the flush-mounted box of up to 6° on each side
- Nominal pressure PN 10
- Return temperature limiter RTL 1930 -50 °C
- maximum operating temperature 90 °C
- Minimum operating temperature 2°C
- it must be taken into account for all multibox versions
- that the flow temperature used by the system is suitable for the system structure of the underfloor heating
- Valve housing corrosion-resistant gunmetal
- Stainless steel spindle with double O-ring seal
- the outer O-ring can be replaced under pressure
- Plastic elements made of ABS and PA
- Return temperature limiter (RTL) with expansion-filled thermostat
- all versions optionally with cover and visible graduated cap in white RAL 9016 or chrome-plated
- flow direction arrows
- Connection G 3/4 with cone suitable for compression fittings for plastic
- Copper-
- Precision steel and composite tube
