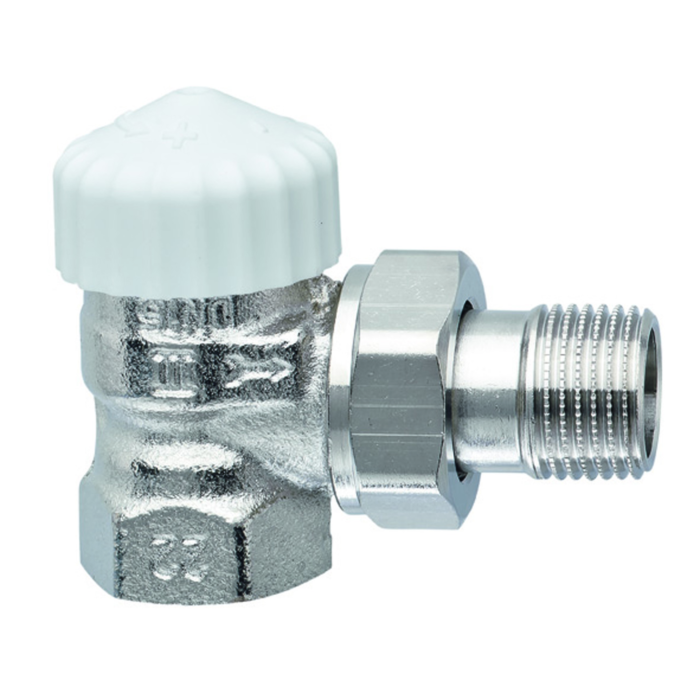

Heimeier V-exact II thermostatic valve body 3451-02.000 Rp 2000 / 2xR 2000 / 2, corner, shortened, brass
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Details
Heimeier V-exact II thermostatic valve body 3451-02.000
- are used in two-pipe pump hot water heating systems with normal to higher temperature spread
- optimized noise behavior
- large flow range
- double O-ring seal
- Functions are rules
- stepless precision presetting and locking
- Nominal pressure PN 10
- Max. Operating temperature 120 ° C
- with protection cap or actuator 100 ° C
- with press connection 110 ° C
- min. Operating temperature -10 ° C
- Thermostatic insert can be replaced with the assembly device without draining the system
- Stainless steel spindle with double O-ring seal
- KEYMARK-certified and tested according to DIN EN 215
- Protection cap white
- not suitable for compression fittings for composite pipes
