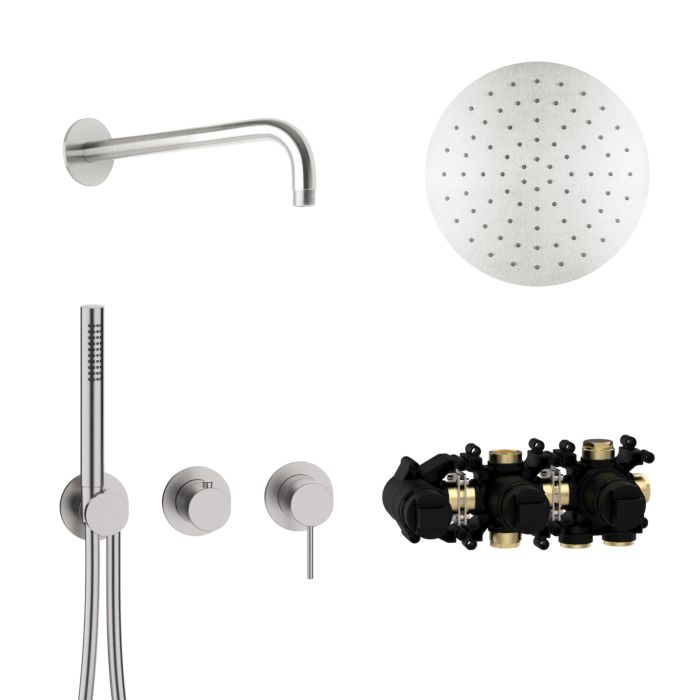

Herzbach MODUL7 fitting set H-RB250 70.702712. 2000 .09 wall arm rain shower 250mm stainless steel

herzbach MODUL7 lever mixer set H-RB250 with rain shower

and hand shower for use in the shower area

SET SCOPE
70.720002. 2000 .09 MODUL7 lever mixer installation body
70.702002. 2000 .09 MODUL7 lever mixer paint set for 2 Verbraucher
17.960350. 2000 .09 LIVING SPA wall arm 350 mm, Ø 70 mm
17.600250. 2000 .09 LIVING SPA rain shower Ø 250 mm

MODUL7 lever mixer installation body
-for 2 Verbraucher

MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
- 2000 /2"" connection thread
-Stainless steel cover Ø 70 mm

LIVING SPA rain shower
-Diameter Ø 250 mm
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt brushed stainless steel surface
Manufacturers herzbach / product group M7 SETS IX
Art no. 70.702712. 2000 .09
