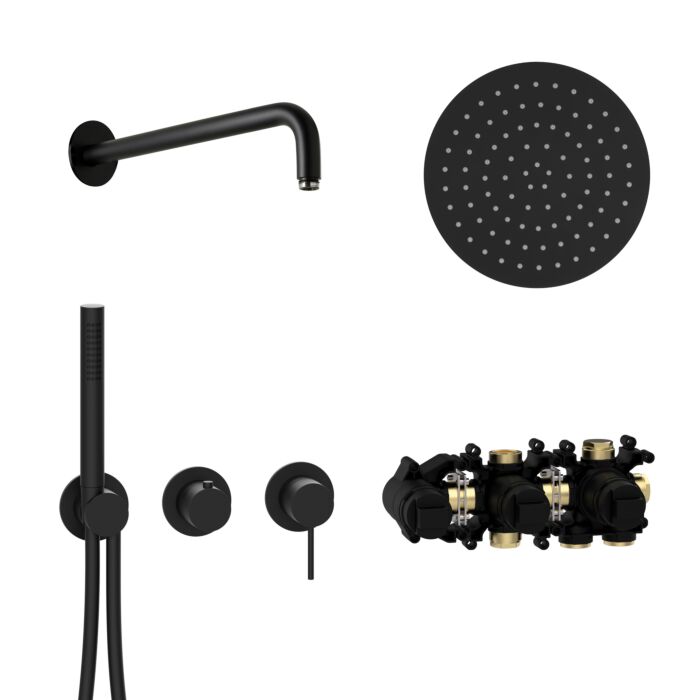

Herzbach MODUL7 fitting set H-RB250 70.702712. 2000 .12 wall arm rain shower 250mm matt black

herzbach MODUL7 lever mixer set H-RB250 with rain shower

and hand shower for use in the shower area

SET SCOPE
70.720002. 2000 .09 MODUL7 lever mixer installation body
70.702002. 2000 .12 MODUL7 lever mixer paint set for 2 Verbraucher
23.960350. 2000 .12 LIVING SPA wall arm 350 mm, Ø 70 mm
23.600250. 2000 .12 LIVING SPA slim rain shower Ø 250 mm

MODUL7 lever mixer installation body
-for 2 Verbraucher

MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
- 2000 /2"" connection thread
-Brass cover Ø 70 mm

LIVING SPA Slim rain shower
-Diameter Ø 250 mm
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt black surface
Manufacturers herzbach / product group M7 SETS BLACK
Art no. 70.702712. 2000 .12
