Herzbach MODUL7 fitting set H-SP3 70.702722. 2000 .09 SPOT Multi stainless steel

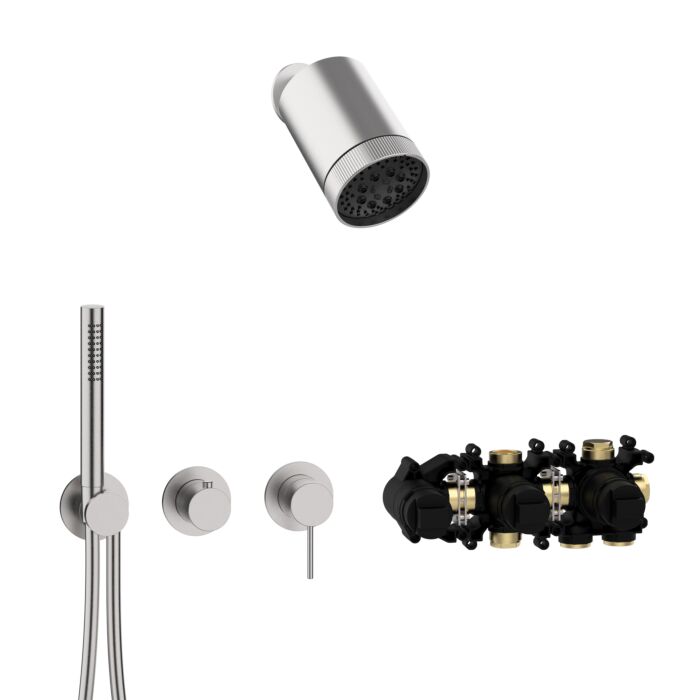

herzbach MODUL7 lever mixer set H-SP3 with SPOT Multi

and hand shower for use in the shower area

SET SCOPE
70.720002. 2000 .09 MODUL7 lever mixer installation body
70.702002. 2000 .09 MODUL7 lever mixer paint set for 2 Verbraucher
11.044286. 2000 .09 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi

MODUL7 lever mixer installation body
-for 2 Verbraucher

MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

LIVING SPA wall-mounted rain shower SPOT multifunction 3
-Blast types: rain / rain soft / massage
-Spray type change using ring adjustment on the shower head
-Dimension 102mm x 142mm
-Incl. round Ø 70 mm and square 70 mm x 70 mm stainless steel wall panel
-centered tilt angle of the shower head 45°
-Shower head can be tilted up/down by 15°
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt brushed stainless steel surface
Manufacturers herzbach / product group M7 SETS IX
Art no. 70.702722. 2000 .09
