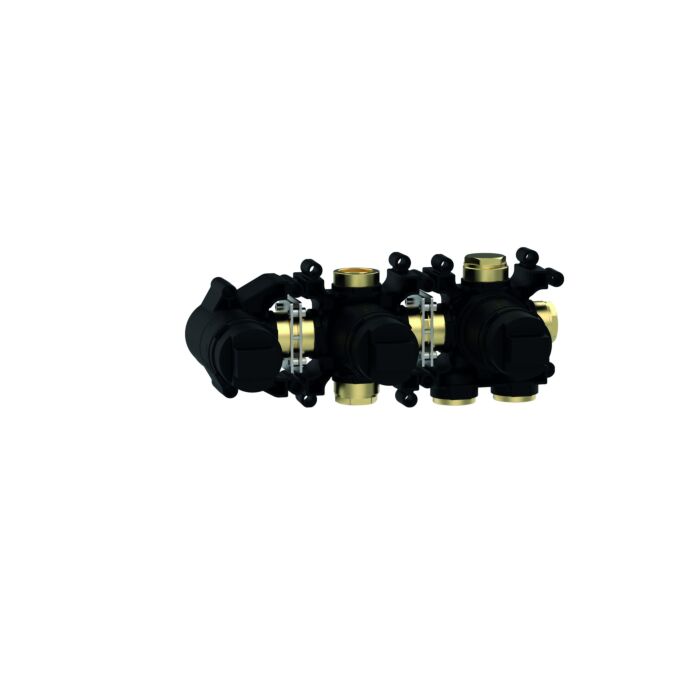

Herzbach MODUL7 Installation body 70.720001. 2000 .09 Thermostat 2 Verbraucher
Details
herzbach MODUL7 thermostat installation body for 2 Verbraucher consisting of:
MODUL7 Thermostat
-2 inlets marked at the bottom to prevent confusion
-Connection thread G 3/4""
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
MODUL7 shut-off and changeover valve
-ceramic 2-way diverter
-one G 3/4"" threaded outlet
-Smooth and stepless volume control with small operating radius
-Comfortable separate consumer selection through haptic locking point
MODUL7 2000 /2"" connecting bend
-for mounting a shower holder set
Module center distance 105 mm
sound-insulated installation
Sealing sleeve suitable for sealing according to DIN 18534
Installation depth 60 mm - 90 mm
maximum flow rate at 3 bar:
Hand shower 24.7 l/min
Rain shower / bath filling 25.2 l/min
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Manufacturers herzbach / Product group M7 EBK
Art -No. 70.720001. 2000 .09
