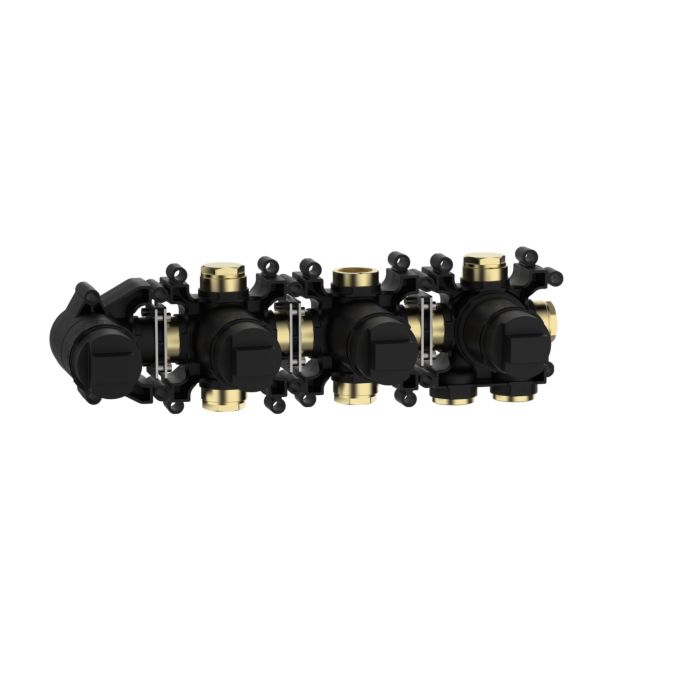

Herzbach MODUL7 installation body 70.720003. 2000 .09 PUSH thermostat 2 Verbraucher

herzbach MODUL7 PUSH thermostat installation body for 2 Verbraucher consisting of:

MODUL7 Thermostat
-2 inlets marked at the bottom to prevent confusion
-Connection thread G 3/4""
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and stepless volume control with comfortable 90° operating radius

MODUL7 2000 /2"" connecting bend
-for mounting a shower holder set

Module center distance 105 mm
sound-insulated installation
Sealing sleeve suitable for sealing according to DIN 18534
Installation depth 77 mm - 97 mm
maximum flow rate at 3 bar:
Hand shower 21.2 l/min
Rain shower / bath filling 21.7 l/min
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Manufacturers herzbach / Product group M7 EBK
Art -No. 70.720003. 2000 .09
