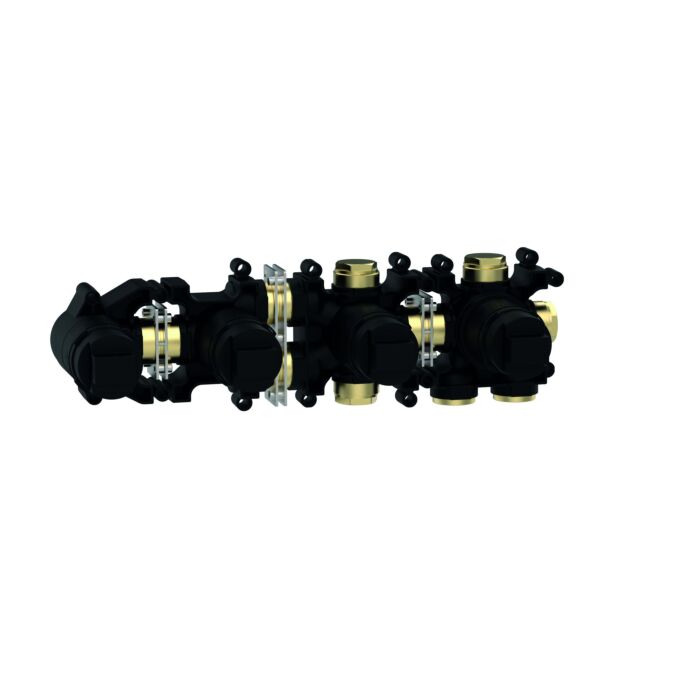

Herzbach MODUL7 built-in unit with spout 70.720012. 2000 .09 lever mixer 2 Verbraucher
Details
herzbach MODUL7 lever mixer installation unit for 2 Verbraucher consisting of:
MODUL7 lever mixer
-2 inlets marked at the bottom to prevent confusion
-Connection thread G 3/4""
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous quantity and temperature regulation
MODUL7 changeover valve
-ceramic 2-way diverter
-Comfortable separate consumer selection through haptic locking point
MODUL7 2000 /2"" connecting bend
-for mounting a wall outlet
MODUL7 2000 /2"" connecting bend
-for mounting a shower holder set
Module center distance 105 mm
sound-insulated installation
Sealing sleeve suitable for sealing according to DIN 18534
Installation depth 60 mm - 90 mm
maximum flow rate at 3 bar:
Hand shower 23 l/min
Wall outlet 23.5 l/min
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Manufacturers herzbach / Product group M7 EBK
Art -No. 70.720012. 2000 .09
