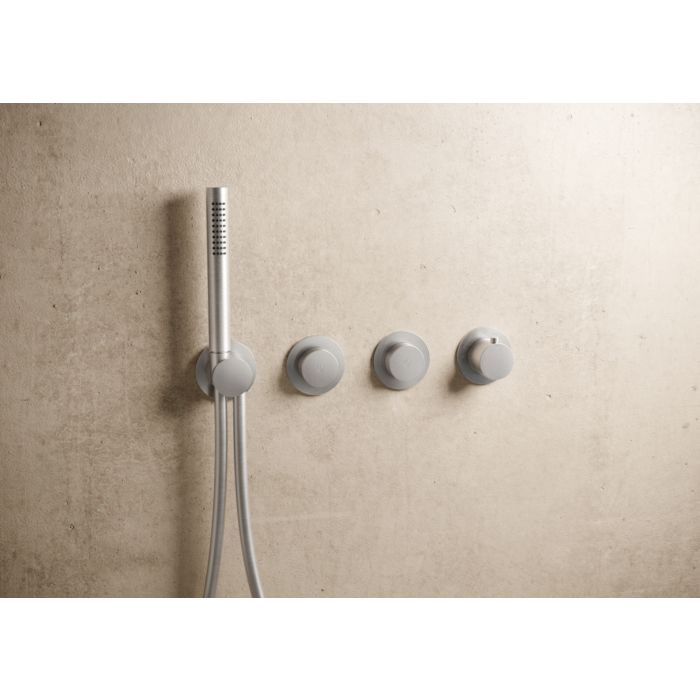

Herzbach MODUL7 PUSH thermostat finish set 70.702003. 2000 .09 2 Verbraucher stainless steel

herzbach MODUL7 PUSH thermostat color set for 2 Verbraucher

for use in the bath / shower area consisting of:

MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with sketched temperature scale

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and stepless volume control with comfortable 90° operating radius
-Stainless steel operating handles
-Stainless steel module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

Module center distance 105 mm
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for attachment to MODUL7 PUSH thermostat installation body (70.720003. 2000 .09)
Surface stainless steel matt brushed
Manufacturers herzbach / Product group M7 IX
Art -No. 70.702003. 2000 .09
