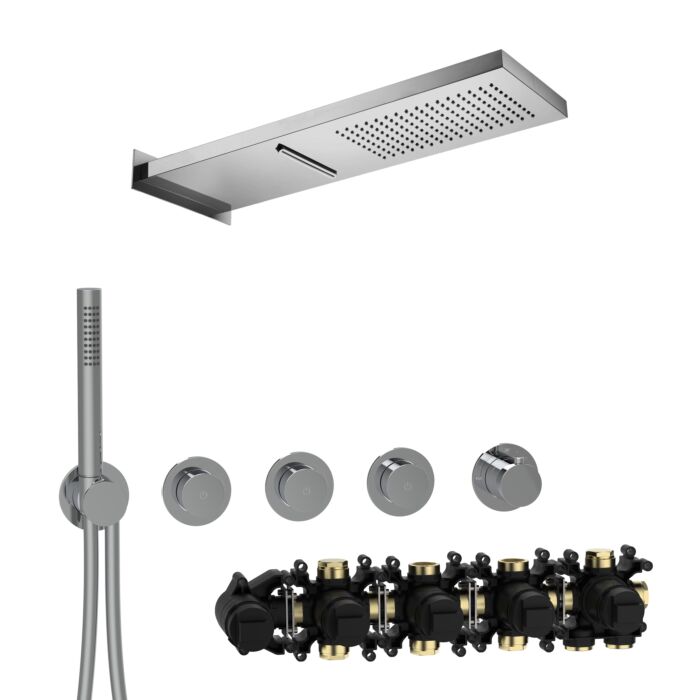

Herzbach MODUL7 PUSH thermostat set P-MU2 70.703713. 2000 .01 537x165mm Multi 2 Chrome

herzbach MODUL7 PUSH thermostat set P-MU2 with wall-mounted rain shower multifunction 2

and hand shower for use in the shower area consisting of:

SET SCOPE
70.730003. 2000 .09 MODUL7 PUSH thermostat installation body
70.703003. 2000 .01 MODUL7 PUSH.Thermostat color set for 3 Verbraucher
11.661600.2.01 LIVING SPA wall rain shower 537x165mm Multi 2

MODUL7 PUSH thermostat installation body
-for 3 Verbraucher

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and infinitely variable quantity regulation with a comfortable 90° operating radius
-Brass control handles
-Brass module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall rain shower multifunction 2 square
Spray type: rain / surge
Dimensions 537mm x 165mm
Installation height 23 mm with wall panel
with fastening material for surface-mounting on the wall
Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturers herzbach / product group M7 SETS CHROME
Art no. 70.703713. 2000 .01
