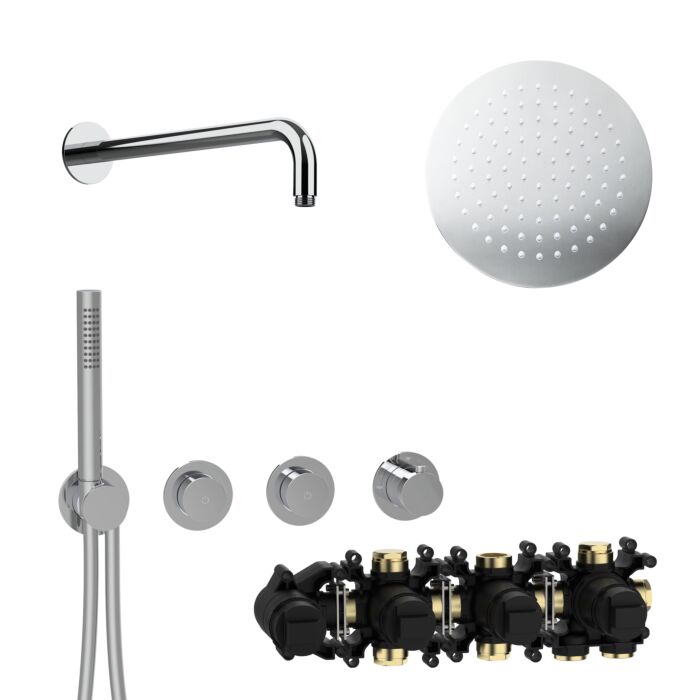

Herzbach MODUL7 PUSH thermostat set P-RB250 70.702713. 2000 .01 wall arm rain shower 250mm chrome

herzbach MODUL7 PUSH thermostat set P-RB250 with rain shower

and hand shower for use in the shower area

SET SCOPE
70.720003. 2000 .09 MODUL7 PUSH thermostat installation body
70.702003. 2000 .01 MODUL7 PUSH thermostat color set for 2 Verbraucher
11.960350. 2000 .01 LIVING SPA wall arm 350 mm, Ø 70 mm
11.600250. 2000 .01 LIVING SPA slim rain shower Ø 250 mm

MODUL7 PUSH thermostat installation body
-for 2 Verbraucher

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm with outlined temperature scale

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and infinitely variable quantity regulation with a comfortable 90° operating radius
-Brass control handles
-Brass module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
- 2000 /2"" connection thread
-Brass cover Ø 70 mm

LIVING SPA Slim rain shower
-Diameter Ø 250 mm
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturers herzbach / product group M7 SETS CHROME
Art no. 70.702713. 2000 .01
