Herzbach MODUL7 PUSH thermostat set P-SP3 70.702723. 2000 .09 SPOT Multi stainless steel

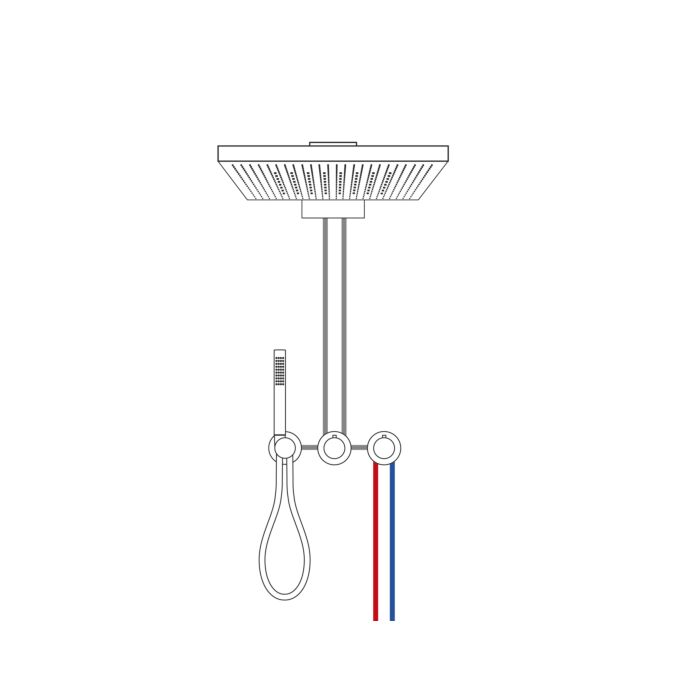

herzbach MODUL7 PUSH thermostat set P-SP3 with SPOT Multi

and hand shower for use in the shower area

SET SCOPE
70.720003. 2000 .09 MODUL7 PUSH thermostat installation body
70.702003. 2000 .09 MODUL7 PUSH thermostat color set for 2 Verbraucher
11.044286. 2000 .09 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi

MODUL7 PUSH thermostat installation body
-for 2 Verbraucher

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with outlined temperature scale

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and infinitely variable quantity regulation with a comfortable 90° operating radius
-Stainless steel operating handles
-Stainless steel module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

LIVING SPA wall-mounted rain shower SPOT multifunction 3
-Blast types: rain / rain soft / massage
-Spray type change using ring adjustment on the shower head
-Dimension 102mm x 142mm
-Incl. round Ø 70 mm and square 70 mm x 70 mm stainless steel wall panel
-centered tilt angle of the shower head 45°
-Shower head can be tilted up/down by 15°
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt brushed stainless steel surface
Manufacturers herzbach / product group M7 SETS IX
Art no. 70.702723. 2000 .09
