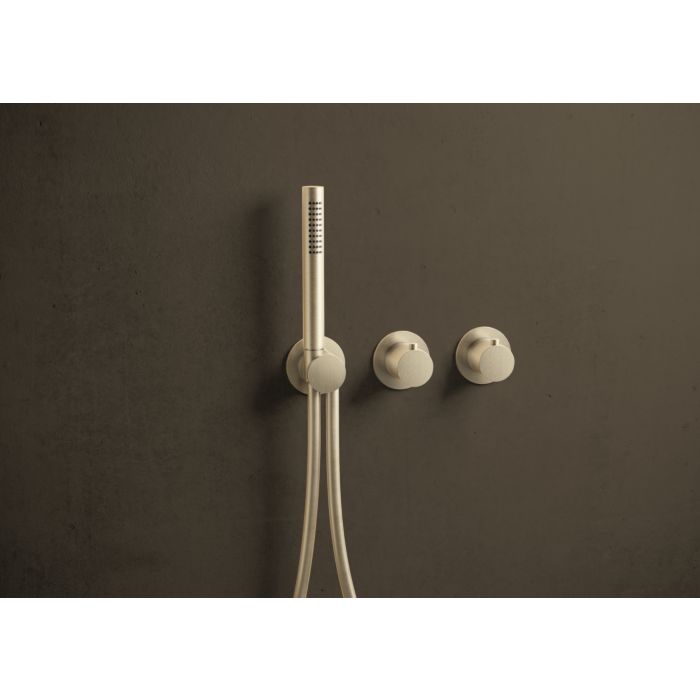

Herzbach MODUL7 thermostat finish set 70.702001. 2000 .41 2/ 3 Verbraucher Brass Steel

herzbach MODUL7 thermostat color set for 2 / 3 Verbraucher

for use in the bath / shower area consisting of:

MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with sketched temperature scale

MODUL7 shut-off and changeover valve
-ceramic 2 / 3 way diverter
-Smooth and stepless volume control with small operating radius
-Comfortable separate consumer selection through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

Module center distance 105 mm
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for mounting on MODUL7 thermostatic installation body ( 2 Verbraucher > 70.720001. 2000 .09 ; 3 Verbraucher > 70.730001. 2000 .09)
Surface PVD Brass Steel
Manufacturers herzbach / Product group M7 IX PVD BR
Art -No. 70.702001. 2000 .41
