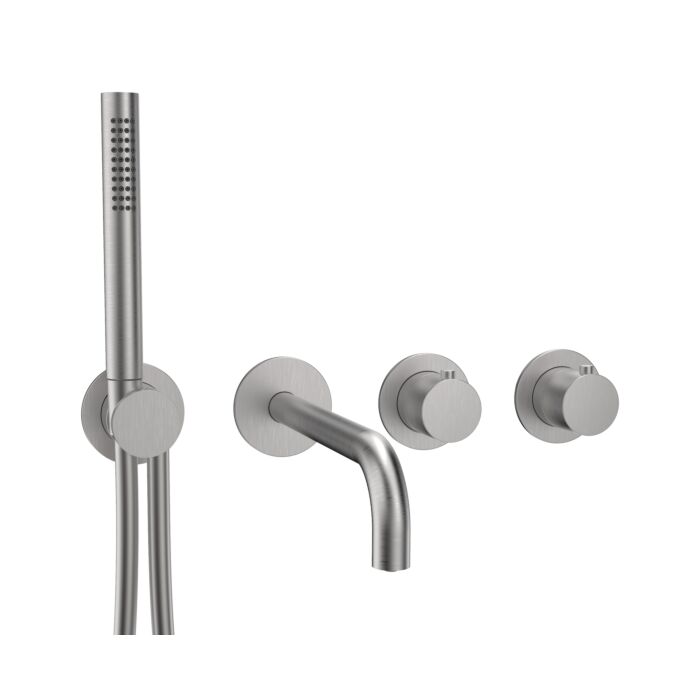

Herzbach MODUL7 thermostat finish set 70.702011. 2000 .09 2 Verbraucher with stainless steel spout

herzbach MODUL7 thermostat colour set for 2 Verbraucher with wall outlet

for use in the bathtub area consisting of:

MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with sketched temperature scale

MODUL7 shut-off and changeover valve
-ceramic 2-way diverter
-Smooth and stepless volume control with small operating radius
-Comfortable separate consumer selection through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 wall outlet
-Projection 240 mm
-Internal bubbler for a soft, splash-free water jet
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet stainless steel hand shower
-Modular cover Ø 70 mm

Module center distance 105 mm
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for attachment to MODUL7 thermostat installation body (70.720011. 2000 .09)
Surface stainless steel matt brushed
Manufacturers herzbach / Product group M7 IX
Art -No. 70.702011. 2000 .09
