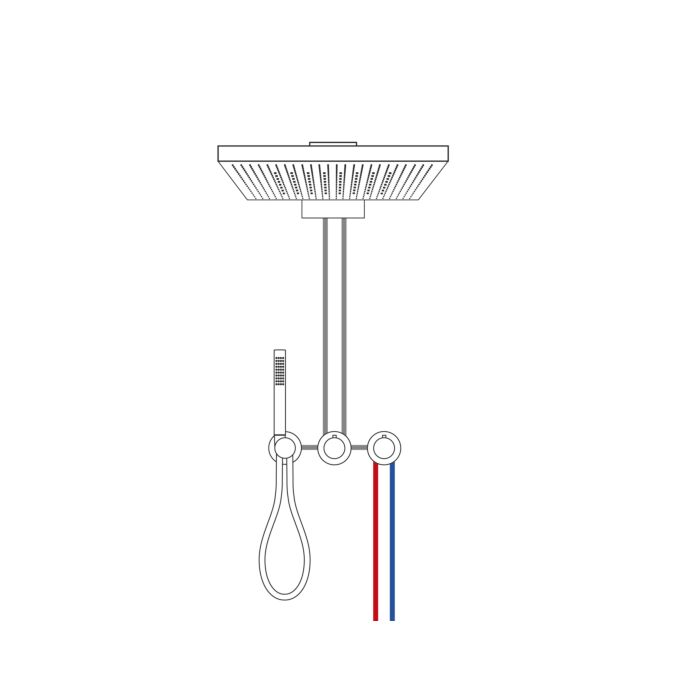

Herzbach MODUL7 thermostat set T-SP3 70.702721. 2000 .01 SPOT Multi Chrome

herzbach MODUL7 thermostat set T-SP3 with SPOT Multi

and hand shower for use in the shower area

SET SCOPE
70.720001. 2000 .09 MODUL7 thermostat installation body
70.702001. 2000 .01 MODUL7 thermostat color set for 2 Verbraucher
11.044286. 2000 .01 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi

MODUL7 thermostat installation body
-for 2 Verbraucher

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall-mounted rain shower SPOT multifunction 3
-Blast types: rain / rain soft / massage
-Spray type change using ring adjustment on the shower head
-Dimension 102mm x 142mm
-Incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centered tilt angle of the shower head 45°
-Shower head can be tilted up/down by 15°
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturers herzbach / product group M7 SETS CHROME
Art no. 70.702721. 2000 .01
