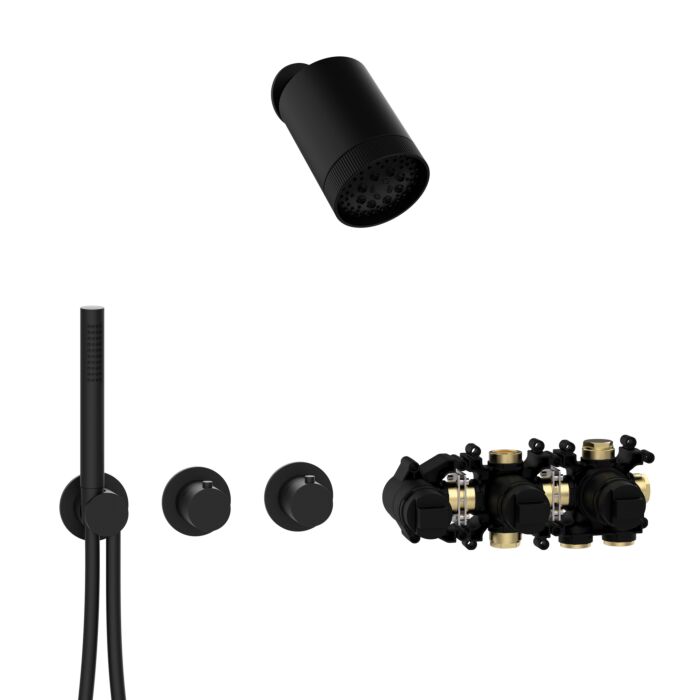

Herzbach MODUL7 thermostat set T-SP3 70.702721. 2000 .12 SPOT Multi Black matt

herzbach MODUL7 thermostat set T-SP3 with SPOT Multi

and hand shower for use in the shower area

SET SCOPE
70.720001. 2000 .09 MODUL7 thermostat installation body
70.702001. 2000 .12 MODUL7 Thermostat color set for 2 Verbraucher
11.044286. 2000 .12 LIVING SPA wall rain shower SPOT 102x142mm Multi

MODUL7 thermostat installation body
-for 2 Verbraucher

MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and changeover valve
-ceramic 2-way diverter
-Smooth and stepless volume control with small operating radius
-Comfortable separate consumer selection through haptic locking point
-Brass operating handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall rain shower SPOT multifunction 3
-Jet types: Rain / Rain soft / Massage
-Change jet type by means of ring adjustment on the shower head
-Dimensions 102 mm x 142 mm
-incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centred angle of inclination of the shower head 45°
-Shower head can be tilted up/down by 15°
-Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 .5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Surface matt black
Manufacturers herzbach / Product group M7 SETS BLACK
Art -No. 70.702721. 2000 .12
