Herzbach MODUL7 thermostat set T-TF2 70.703721. 2000 .09 TWIN FLOW stainless steel

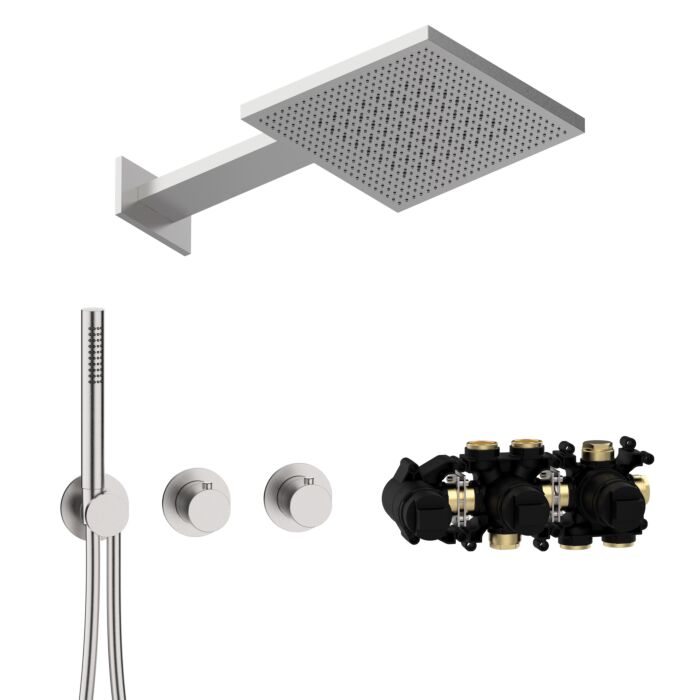

herzbach MODUL7 thermostat set T-TF2 with TWIN FLOW and hand shower

for use in the shower area consisting of:

SET SCOPE
70.730001. 2000 .09 MODUL7 thermostat installation body
70.702001. 2000 .09 MODUL7 thermostat color set for 3 Verbraucher
11.044277. 2000 .09 LIVING SPA wall-mounted rain shower TWIN FLOW

MODUL7 thermostat installation body
-for 3 Verbraucher

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 3-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

LIVING SPA wall-mounted rain shower TWIN FLOW multifunction 2
Spray type: Rain soft / Rain intense
Dimensions Regenfeld 300 mm x 300 mm
with fastening material for surface-mounting on the wall
Clean effect

Module center distance 105 mm
Min. operating pressure: 1930 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt brushed stainless steel surface
Manufacturers herzbach / product group M7 SETS IX
Art no. 70.703721. 2000 .09
