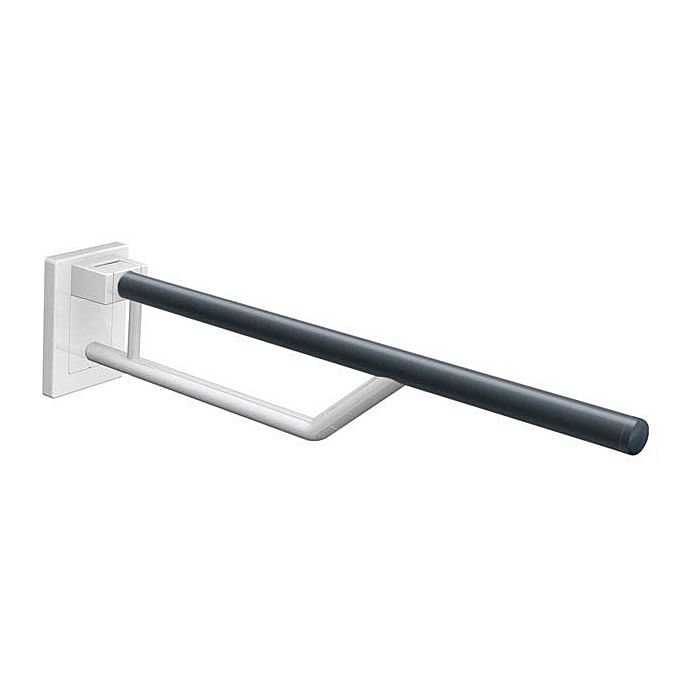

Hewi duo Hewi support rail 950.50.1319933 mobile, projection 850, cover pure white, rubinrot
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Details
Hewi Duo support arm 950.50.1319933
- for simple and flexible retrofitting to an existing one
- pre-assembled HEWI mounting plate 950.50.014 (please order separately)
- tool-free and quick assembly through simple
- short hanging
- secured against unintentional pulling out
- Release for flexible use by means of spring actuation
- The lower beam is guided to the upper beam at an angle of 135 °
- loadable up to 100 kg
- can be folded up and braked down
- with continuous
- corrosion-protected steel core
- integrated wall plate made of steel with cover made of polyamide
- Wall plate 181 mm high and 130 mm wide
- Upper beam ø 33 mm
- Lower beam ø 25 mm
- stable three-point attachment
- for wall mounting with concealed
- Corrosion-free and tested HEWI fastening material for different wall structures (to be ordered separately)
- Upper beam in selected HEWI colors
Downloads (2)
Product Safety
Manufacturer
HEWI Heinrich Wilke GmbH
E-Mail
info@hewi.de
Address
Prof.Bier-Straße 1-5
34454 Bad Arolsen
Germany
