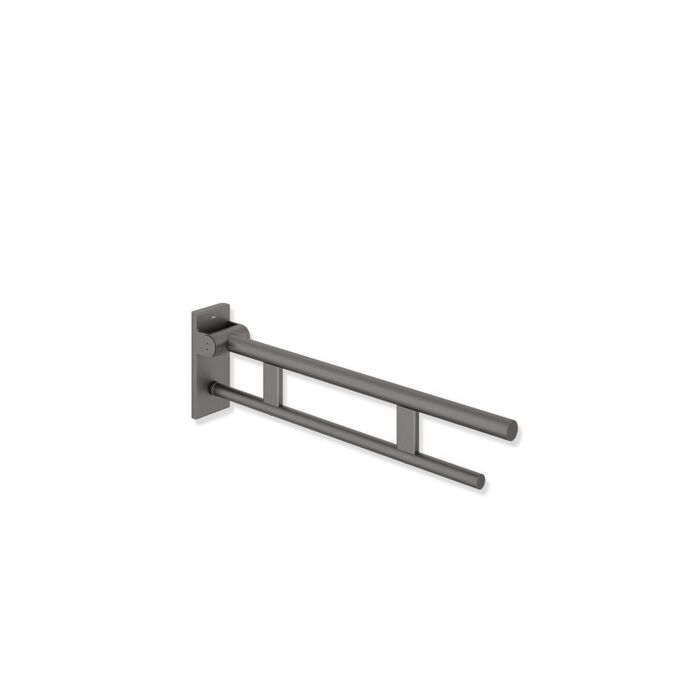

Hewi System 900 hinged support rail 900.50.10360SC projection 750 mm, powder-coated dark gray deep matt
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 200
Details
Hewi System 900 hinged support rail 900.50.10360SC
- made of stainless steel
- two parallel
- Round handle levels arranged one above the other
- can be folded up and braked down
- maintenance-free
- permanently smooth joint
- preset at the factory
- From a 45 ° incline, the support arm lowers automatically
- In the upper position (inclination <45 °), a defined frictional force secures the hinged support rail against unintentional lowering / release
- defined stop prevented
- that the support arm hits the wall
- highest product rigidity increases stability and creates a secure grip for the user
- 210 mm high and 101 mm wide
- Upper beam Ø 33
- 7 mm
- Lower beam Ø 25 mm
- loadable up to 100 kg
- with sealing element to seal the fastening points
