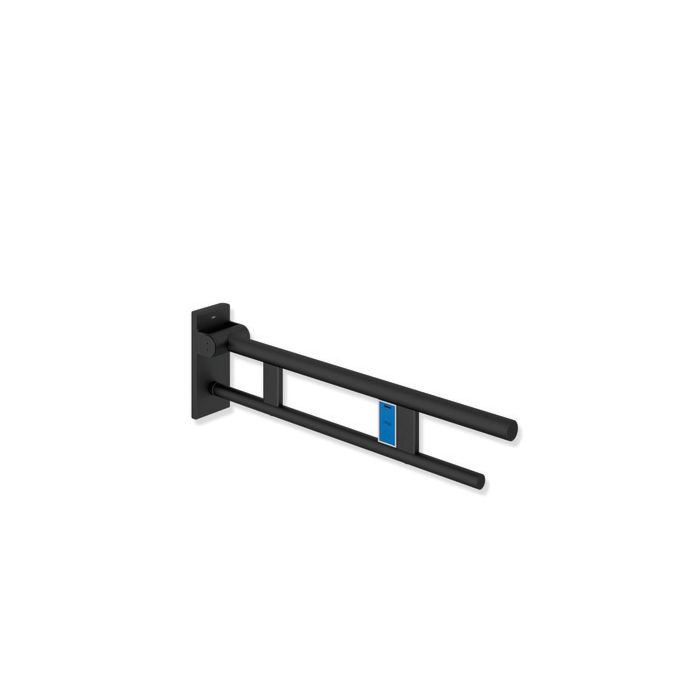

Hewi System 900 hinged support rail 900.50.11960DC projection 750 mm, stainless steel powder-coated black deep matt, left, radio flush trigger
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 200
Details
Hewi System 900 hinged support rail 900.50.11960DC
- made of stainless steel
- two parallel
- Round handle levels arranged one above the other
- can be folded up and braked down
- maintenance-free
- permanently smooth joint
- preset at the factory
- From a 45 ° incline, the support arm lowers automatically
- In the upper position (inclination <45 °), a defined frictional force secures the hinged support rail against unintentional lowering / release
- defined stop prevented
- that the support arm hits the wall
- highest product rigidity increases stability and creates a secure grip for the user
- 210 mm high and 101 mm wide
- Upper beam Ø 33
- 7 mm
- Lower beam Ø 25 mm
- loadable up to 100 kg
- with sealing element to seal the fastening points
Downloads (3)
Product Safety
Manufacturer
HEWI Heinrich Wilke GmbH
E-Mail
info@hewi.de
Address
Prof.Bier-Straße 1-5
34454 Bad Arolsen
Germany
