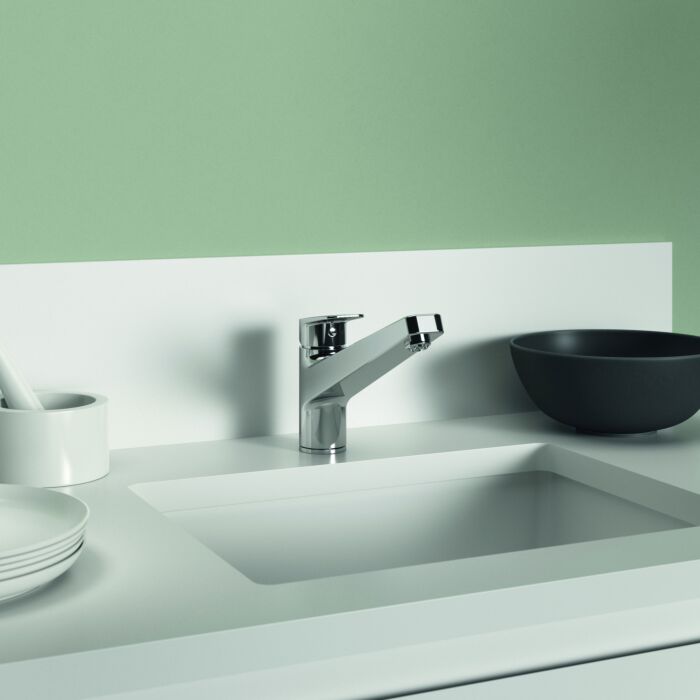

Ideal Standard Ceraplan Kitchen faucet low pressure BD322AA low pressure chrome

Ideal Standard Ceraplan kitchen faucet low pressure BD322AA

External dimensions (WxDxH): 50x264x168 mm
Projection: 219 mm
Outlet height: 134 mm
Fastening type: shank screw connection from below
Faucet handle: handle made of metal
Handle with temperature marking: red and blue
Company Flow cartridge
Cartridge life test 500,000 cycles
Cartridge swivel range: 100 degrees
Cartridge translation made of stainless steel
Hot water temperature limiter: integrated
cartridge ceramic
Fat reservoir (food grade)
Noise behavior DIN 4109: Group 2000
Service life: DIN EN 817, DIN EN 200
Flow regulator (l/min): 6 litres
low pressure
Backflow protection according to EN 1717: Other
Strahlregler open (visible)
Temperature resistance continuous load: 80 degrees
Temperature resistance peak load: 95 degrees
Temperature control: manual operation
Spout: rotatable (cast)
Material handle mount: plastic
Swivel range from the spout: 360 degrees
35 mm required tap hole diameter
Can be used for max. worktop thickness: 40 mm
Color / finish: chrome (shiny)
Finish: chrome plated
