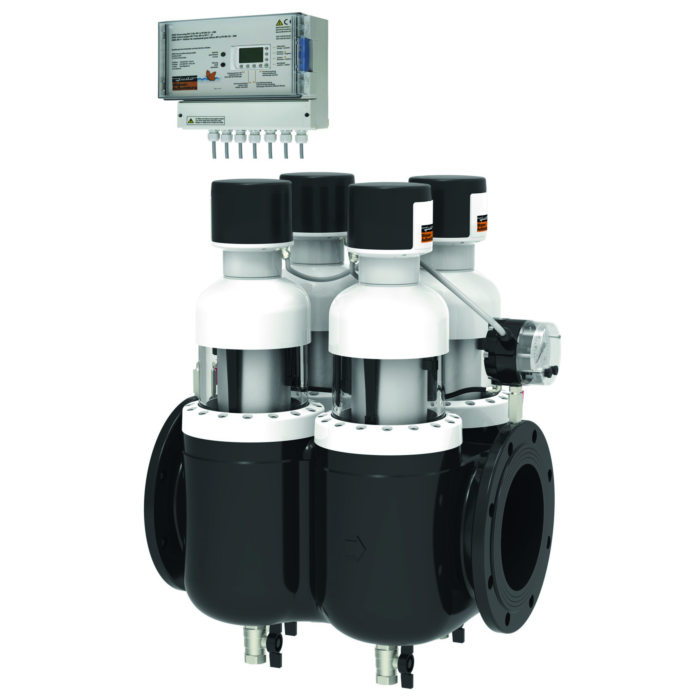

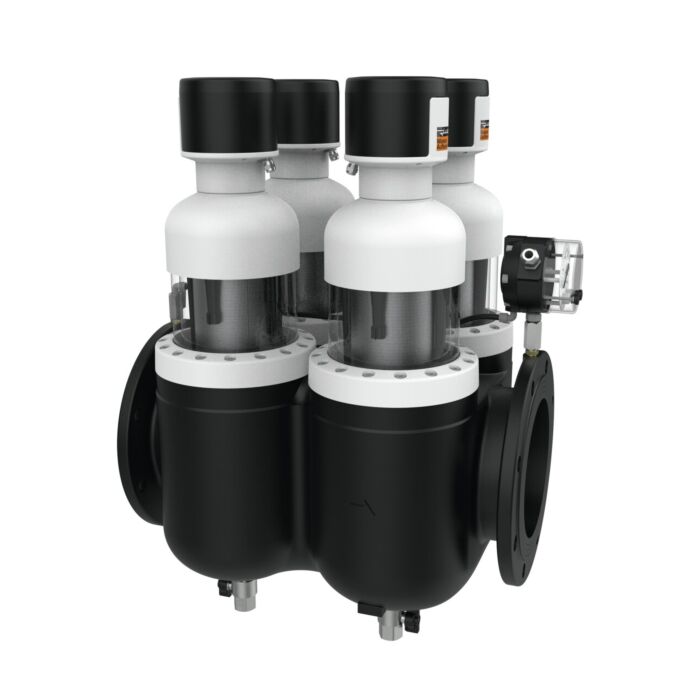

Judo Profimat backwash protection filter 8320010 JPF-QC-ATP, 30 µm special mesh size, DN 125, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Details
Judo Profimat backwash protection filter 8320010
- Filter housing made of grey cast iron PN 10
- inside and outside corrosion-resistant plastic coated
- Flange connection according to DIN EN 1092-2
- Stainless steel filter mesh
- Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
- Differential pressure measurement with automatic backwash for setting the operating and backwash positions by servomotor
- separate control box
- Backwashing dependent on time and differential pressure through additional differential pressure gauge with adjustable differential pressure up to max. 2 bar
- with potential-free contact for remote transmission of the fault message
- with function and fault indication via LED and buzzer
- Power supply (230 V/50 Hz) via connection cable (approx. 3 m) with plug
- for drinking water up to 30 °C
- Operating pressure 2000
- 5-10bars
