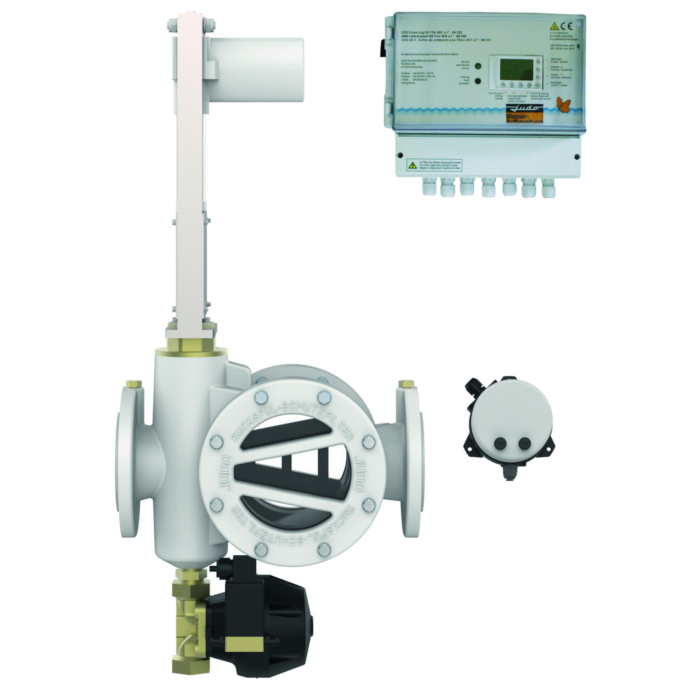

Judo backwash protection filter 8310167 500 µm special mesh size, DN 100, automatic backwash

Name: Judo backwash protection filter 8310167 500 µm special mesh size, DN 100, automatic backwash
Brand: Judo
SKU: 8310167
Price: 13676.43 EUR
Availability: InStock

Be the first to review this product

€13,676.43

instead of €17,078.44 **

-20% You're saving €3,402.01

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 400

Part Number: 8310167

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

Judo backwash protection filter 8310167

Housing made of grey cast iron PN 10 with 2 connections 2000 /4" IG for differential pressure gauge
Flange connection according to DIN EN 1092-2
inside and outside corrosion-resistant plastic coated
Sight glasses on both sides
2 filter chambers, each with a permanent filter insert ( Filter -/supporting mesh made of stainless steel)
Multi-way valve with linear actuator for automatic control of the operating and backwash positions
Differential pressure gauge with switching contacts
Diaphragm flush valve with attached pilot solenoid valve (control medium compressed air 5
5-7 bars)
PLC control with potential-free fault and backwash message
Power supply 230 V/50 Hz
Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
for drinking water up to 30 C
Operating pressure 2000
5-10bars
