Judo backwash protection filter 8310257 500 µm special mesh size, DN 125, automatic backwash
€20,111.95
instead of
€25,114.80
**
-20%
You're saving
€5,002.84
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8310257
Details

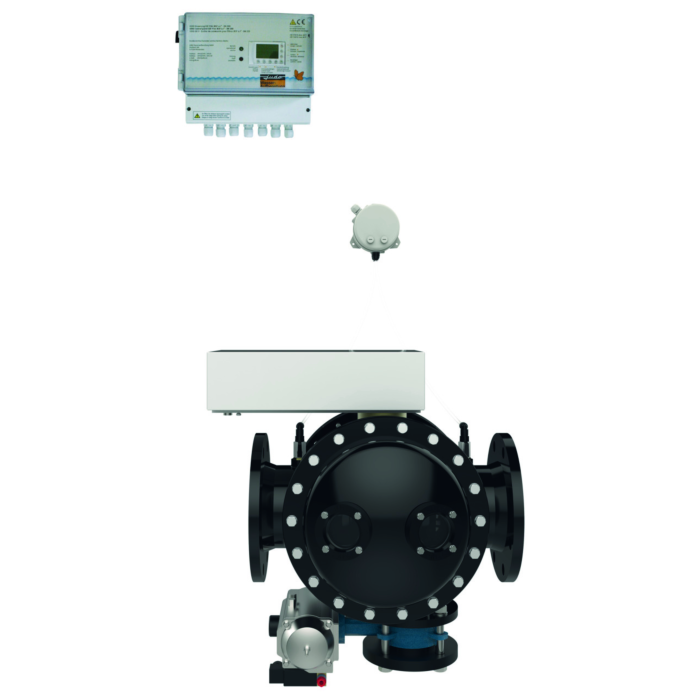

Judo backwash protection filter 8310257
- Welded steel housing PN 10 with 2 connections 2000 /2" IG for differential pressure gauge
- Flange connection according to DIN EN 1092- 2000
- inside and outside corrosion-resistant plastic coated
- Sight glasses on both sides
- 2 filter chambers, each with a permanent filter insert ( Filter -/supporting mesh made of stainless steel)
- Diverter flap with linear drive for automatic control of the operating and backwash positions
- Differential pressure gauge with switching contacts
- Butterfly valve with pneumatic actuator and attached pilot solenoid valve (control medium compressed air 6-8 bar)
- PLC control with potential-free fault and backwash message
- Power supply 230 V/50 Hz
- Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
- for drinking water up to 75 °C
- Operating pressure 2000
- 5-10bars
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
