Jung Multistream Sewage Pump JP09904 75/4 C5 400V Non-Explosion Proof
€11,973.78
instead of
€15,565.91
**
-23%
You're saving
€3,592.13
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Details

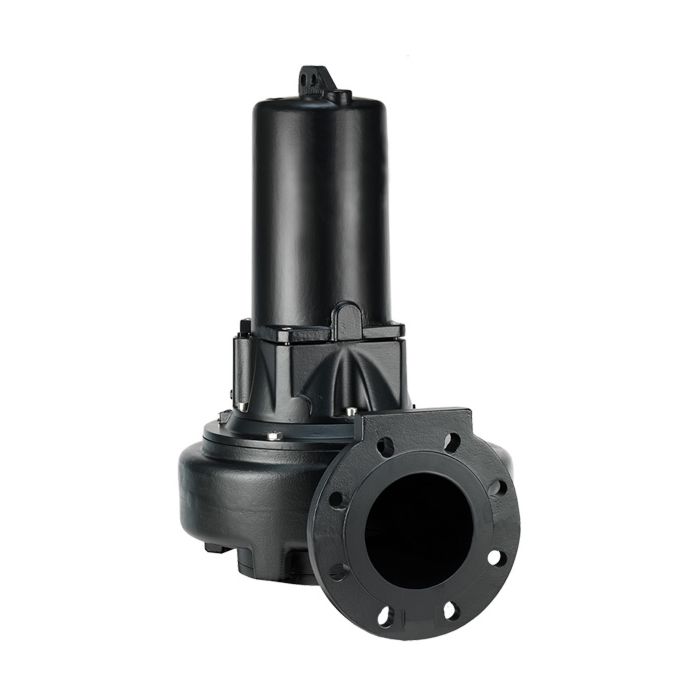

Jung multistream sewage pump JP09904
- vertical single-stage submersible motor pump with horizontal pressure outlet and high operational reliability
- LGA type tested according to DIN EN 12050
- Adjustable axial gap with grooves that is not prone to clogging
- run-dry safe
- Silicon carbide mechanical seal on the medium side and double radial shaft seal ring on the motor side with oil chamber and seal inspection option
- Longitudinally watertight cast cable entry with pluggable cable connection
- Impeller: single channel
- Free passage 40 mm
- Pressure connection DN 65 for PN 6/PN 10
- Pumping medium max 40 degrees °C
- Flow rate Q: max 38 m3/h
- Head H: max 13 m
- Weight 41kg
- Voltage 3/PEx400V
- 50Hz
- stream 2
- 7 A
- Power P2: 2000
- 2000 kW
- Speed 2900 2000 / min
- direct launch type
- Degree of protection IP 68
- Motor protection: winding thermostats
- Line: 10m H07 RN-F 6G 2000
- 5
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
