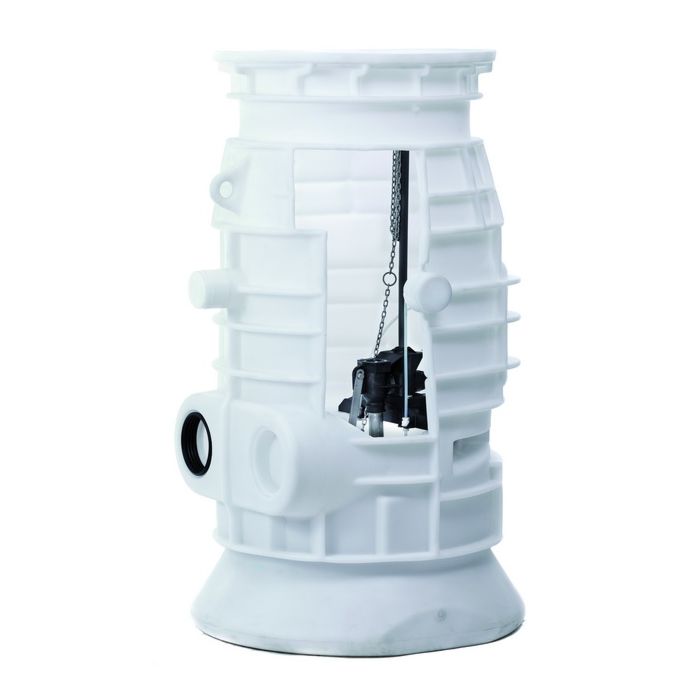

Jung Pks plastic shaft JP09475 B 800 32, anti-buoyancy, PE, white

Name: Jung Pks plastic shaft JP09475 B 800 32, anti-buoyancy, PE, white
Brand: Jung
SKU: JP09475
Price: 2459.02 EUR
Availability: InStock

Be the first to review this product

€2,459.02

instead of €4,094.27 **

-40% You're saving €1,635.25

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 3500

Part Number: JP09475

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

Jung pks plastic case JP09475

passable up to class B 125
Pump shaft for accommodating a MultiCut submersible sewage pump with/without explosion protection through a pressure pipe unit DN 32
general building approval: Z-42. 2000 -43. 2000
deposit-free collection space
2 sleeves DN 150 for the inlet
one of which is ready for connection with a seal and a closed sleeve for subsequent on-site connection
3 pipe sockets DN 100 for ventilation or cable duct
Manhole components made of corrosion-resistant materials
Traverse and coupling system DN 32 made of polyphthalamide (PPA)
Stainless steel ball valve with extension and safety lever
Sliding tube for pump guidance with bracket made of stainless steel
Stainless steel pressure line outlet 2000 2000 /4'
with optional PSV extensions, the shaft can be installed up to an installation depth of 2
7 m (class B) or 2
9 m (class A ) can be extended
Level differences can be compensated with a support ring
for cleaning and maintenance, the pressure pipe unit is pulled out of the shaft complete with pump and ball check valve
Dimensions without cover: Nominal diameter: 800 mm
Total height 1600mm
Sole inlet from above: 1150 mm
Sole pressure nozzle from above: 940 mm
Tank volume: 640 l
Residual volume: 36 l
Weight: 78kg
