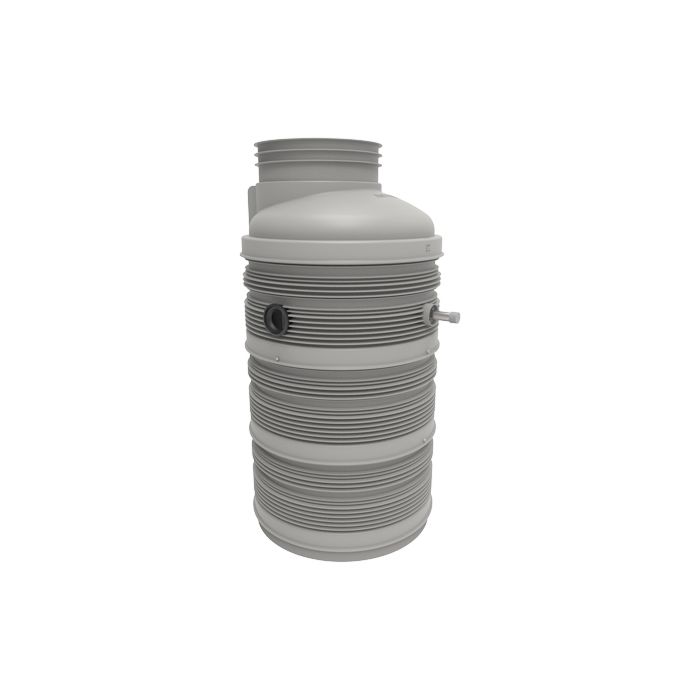

Jung Pks plastic sump JP44359 D 1000-D40 drive-over pump sump
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP44359
Details
Jung pks plastic case JP44359
- Buoyancy-proof and groundwater-tight pump shaft according to DIN EN 13598-2
- with riser
- made of polypropylene (PP)
- to accommodate a submersible sewage pump with/without explosion protection
- passable up to class D 400
- Lower part with pipe socket OD/DN 160 for the inlet
- 2 sleeves DN 100 for Lüftung /cable duct and stainless steel discharge nozzle R 2000 2000 /2'
- Konus 1000/625 support ring for accommodating a manhole cover Ø = 610 mm
- the individual segments are sealed with lip seals
- clutch foot
- Pressure line DN 40 (stainless steel)
- Ball angle valve DN 40 (PPA)
- Maintenance slider DN 40 (stainless steel) and flushing connection option are already installed in the lower part
- Dimensions without cover: 1000 mm - nominal diameter
- 2275mm - overall height
- 1575 mm - sole inlet from above
- 0995 mm - bottom pressure nozzle from above
- 1372 l - tank volume
- 280 kg - weight
Downloads (2)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
