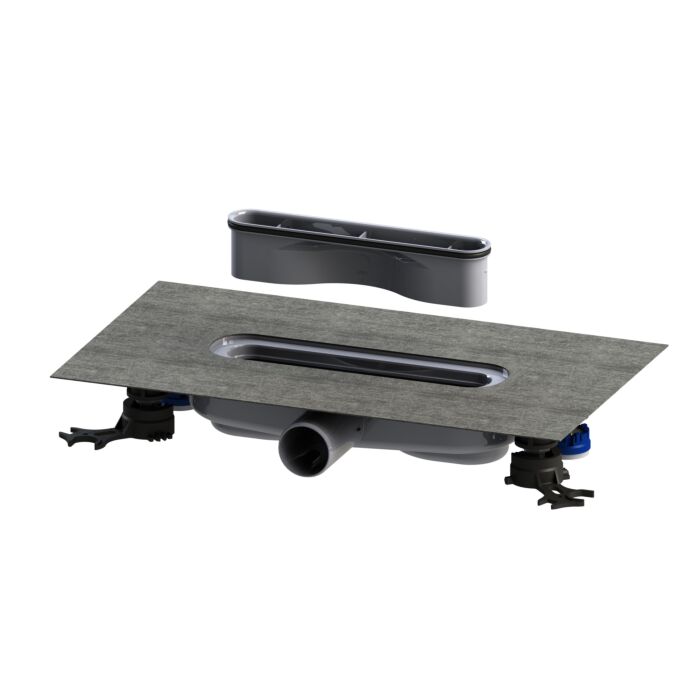

Kaldewei drain fitting FlowDrain 4204 687744810000 Horizontal Flat, drain fitting set for Shower channels
Details
Kaldewei Drain fitting FlowDrain 4204 687744810000
• Included in delivery: connection pipe, base body, floor fastening, height-adjustable feet, sealing sleeve, siphon, construction period protection.
• With sealing and sound insulation.
• With ISK key for height adjustment.
• Easily removable siphon for easy cleaning.
• Quick and easy installation.
• Low installation height: DN 40 with installation heights from 58 mm to 78 mm.
• Can be placed in front of the wall or directly on the wall with overall structure (silicone, tile, tile adhesive, sealant) from 14 mm to 20 mm.
• Discharge capacity according to DIN EN 1253 > 1930 ,6 l/s with a required backflow height of 20 mm (sealing height 30 mm).
