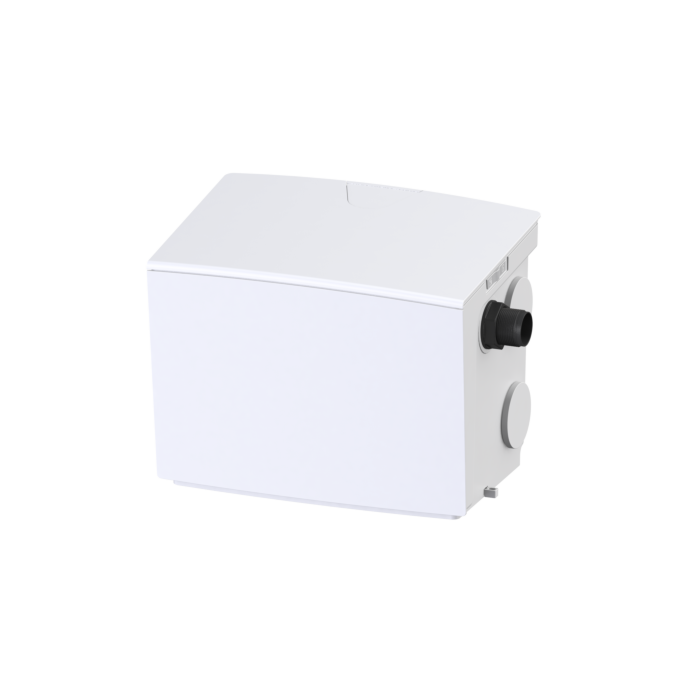

Kessel Minilift S small lifting system 28562 GTF 500, free installation

Kessel Minilift S small lifting system 28562

• The ready-to-plug Minilift S small lifting system is suitable for the wastewater disposal of domestic dirty water, ideal for connecting showers, bathtubs, washbasins, sinks, dishwashers or washing machines.
• The floodable pump with float switch can be easily removed using one-handed locks
• The plastic collection container has an open pump space and is resistant to aggressive wastewater
• Thanks to its numerous inlets (4x DN 50 horizontal, 1x DN 40 vertical) and adjustable outlets, the system offers flexible and easy options for on-site Plumbing
• Hot water resistant
• Variable usable volume thanks to height-adjustable float
• Pressure-side non-return valve integrated at the factory
• Pump with free-flow impeller for maximum operational safety
• Tool-free maintenance
• Type of wastewater: fecal-free
• Installation situation: free installation
• System type: Single system
• Pump control: float switch
• Backflow preventer: integrated
• Pressure connection options: thread 2000 2000 /2", PVC adhesive connection, click adapter
• Ventilation: activated carbon filter
• Delivery condition: ready to plug in
• General features: Color: white
• Standard: EN 12050-2
• Dimensions: Length: 425 mm Width: 300 mm Height: 340 mm
• Inlet quantity: 5 pieces
• Inlet nominal diameter (DN): 40
• Container volume: 30 l
• Min. useful volume: 5 l
• Usable volume max.: 12 l
• Pressure outlet: horizontal
• Pressure outlet (DN): 32 mm
• Pressure outlet (DA): 40 mm
• Free ball passage: 10 mm
• Pump: GTF 500
• Number Pumps : 2000
• Delivery rate max.: 10 m3/h
• Maximum delivery height: 8 m
• Operating voltage: 230V
• Mains frequency: 50 Hz
• Operating mode: S1
• Power P1: 1930 kW
• Power P2: 1930 kW
• Speed: 2,800 rpm
• Required protection (line protection): C 16 A
• Conveyed material temperature (permanent) max.: 40 °C
• Short-term hot water resistance (2 minutes): 80 °C
• Connection type: Schuko 2-pole
• Weight: 6kg
• Impeller type: free-flow impeller
• Length of pump power connection cable: 5 m
• Rated current: 2.7 A
• Protection class pump: IP 68 (3m)
• Protection class: I type
• Pump connection cable: H07RN-F 3G 2000 , 1930 mm2
• Temperature monitoring: integrated
• Art level detection: mechanical
• Instrument level detection: float switch
