Mepa MEPAzero Lumo flush plate 421870 glass white, 2 quantities, for concealed cistern
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 421870
Details

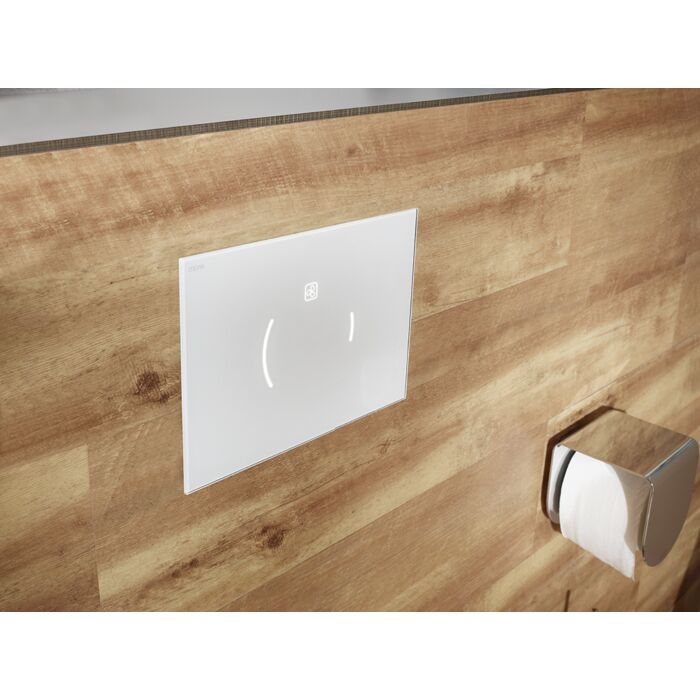

Mepa MEPAzero Lumo flush plate 421870
- for manual or automatic flush actuation with MEPA concealed cisterns
- for manual or automatic fan activation of MEPA Air toilets
- glass / plastic
- 230x157x11mm
- actuation from the front
- for surface-mounted or tile-flush installation
- Actuator plate without mechanical buttons
- Keys recognizable by arcing
- Key illumination activates when approached
- Key illumination white
- Dual flush when setting manual flush actuation
- large and small flush volume separately adjustable
- 2000 flush when setting automatic flush release
- Potential-free connection contact for manual flush actuation via E button
- Fan power adjustable in 6 stages
- Fan run-on time adjustable in 3 stages ( 2000 min / 3 min / off)
- Child lock function (stop rinsing when rinsing quickly several times in a row)
- Night light function (strength of the key illumination is regulated depending on the ambient light)
- Cleaning stop (automatic flushing trigger for cleaning the flush plate can be switched off)
- Hygienic flushing function (interval time adjustable from 24-240 hours (in 24-hour increments)
- adjustable number of flushes from 2000 -10 flushes per hygienic flushing interval)
- Emergency operation function via battery (up to 10 flushing operations are possible)
- LowBatt indicator
- manual operation via capacitive surface
- automatic operation via infrared proximity electronics
- Degree of protection IP44
- IR response range adjustable
- non-interchangeable plug connections
- 230/24 volt mains operation
- Scope of delivery: lifting mechanism with servo motor for raising the drain valve
- IR remote control to set all functions
- mounting frame
- 1x pusher bar
- 2x spacer bolts
- Suction cup for dismantling the actuating plate
- Lithium battery 6 volt type CRP2 and fastening material
