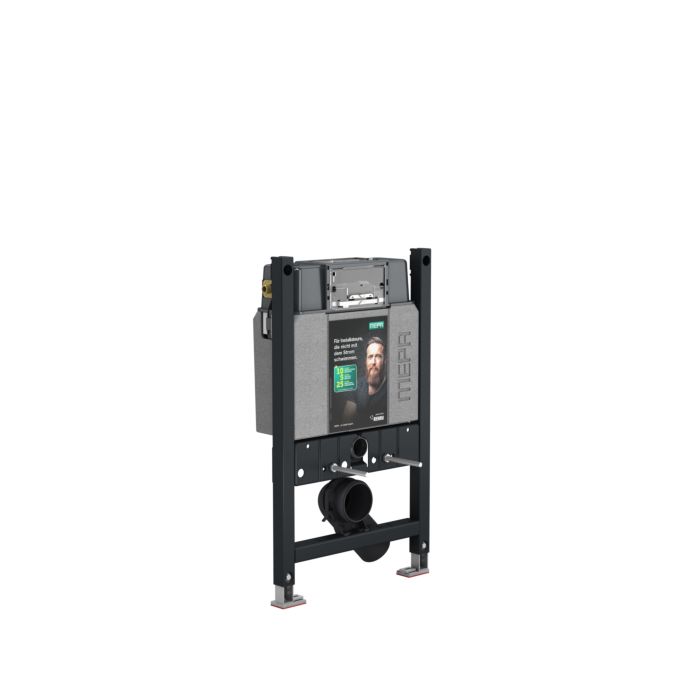

Mepa nextVIT wall WC element 511105 system height 85 cm

Mepa nextVIT wall- WC -element 511105

• pre-assembled mounting element for wall-mounted WC
• for drywall installation
• for individual installation in front of a solid or in a stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for panelling with gypsum fibre or plasterboard
• powder-coated profile frame
• powder-coated profile frame
• Height-adjustable footrests 1930 -240 mm with integrated anti-slip
• Rotatable footplates
• Compensating drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile
• Center line marking for exact alignment of the element’s axis center
• UP cistern Sanicontrol type B31
• 2-volume or 2000 -volume or start/stop flushing technology
• Cistern completely pre-assembled
• Testing and CE marking according to DIN EN 14 055
• Water connection left
• Flushing volume 6/3 l (factory setting)
• Flushing volumes can be adjusted separately (large flushing volume 5-7 l continuously variable, small flushing volume 3-4.5 l continuously variable)
• max. flushing volume 7.5 l
• Immediate rinsing possible with factory setting
• Integrated flush flow throttle for continuous reduction of the flush flow from approx. 2.2 l/s (min. throttling) to approx. 2000 .8 l/s (max. throttling)
• condensate-proof
• mechanical operation from the front or from above
• WC -connecting bend 3-way depth adjustable
• Connection to shower WC systems possible
• Water connection G 2000 /2 A with integrated angle valve and handwheel
• PE wall WC connection bend DN 90
• PE wall WC connection fitting DN 90
• PE transition piece DN 90/110
• Wall WC mounting set M12
• Construction protection box for inspection opening
• 2 protective plugs
• Fastener 541023 must be ordered separately!
