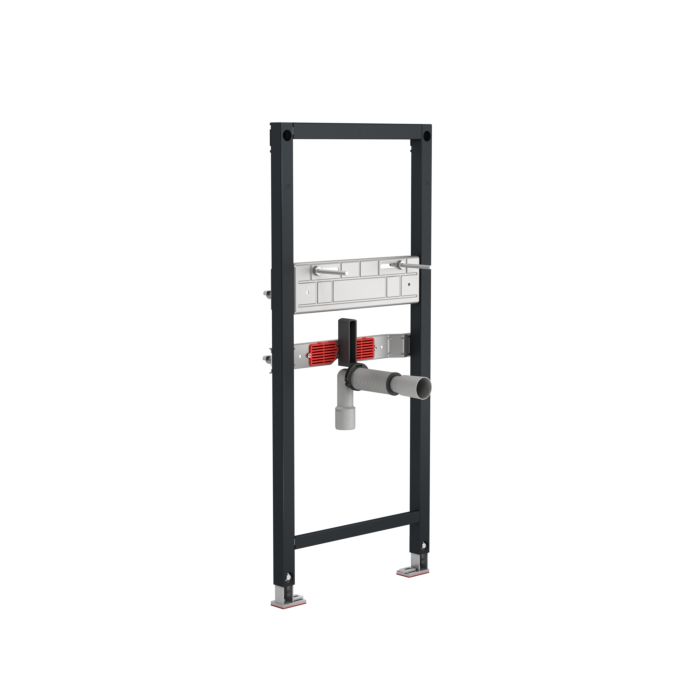

Mepa nextVIT washbasin element 521017 system height 120 cm, for single-hole mixer without wall panels

Mepa nextVIT washbasin element 521017

• Pre-assembled mounting element for single-hole washbasin mixer
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated profile frame
• Height-adjustable footrests 1930 -240 mm with integrated slip resistance
• Base plates can be rotated (compensate for drilling errors, depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Center and meter markings for exact alignment of the center of the axis and installation height of the element
• Tool-free, height-adjustable, non-slip connecting traverses for water connection/drain/ceramic fastening
• Hole spacing ceramic fastening 150-240 mm and 280 mm
• Installation of standard wall panels G 2000 /2 possible
• 2x mounting plates to accommodate standard wall panels
• Height-adjustable drain arch holder
• HT siphon bend DN 50/50 with rubber sleeve NW 30/50 (2-way depth adjustable)
• 2x threaded bolts M10
