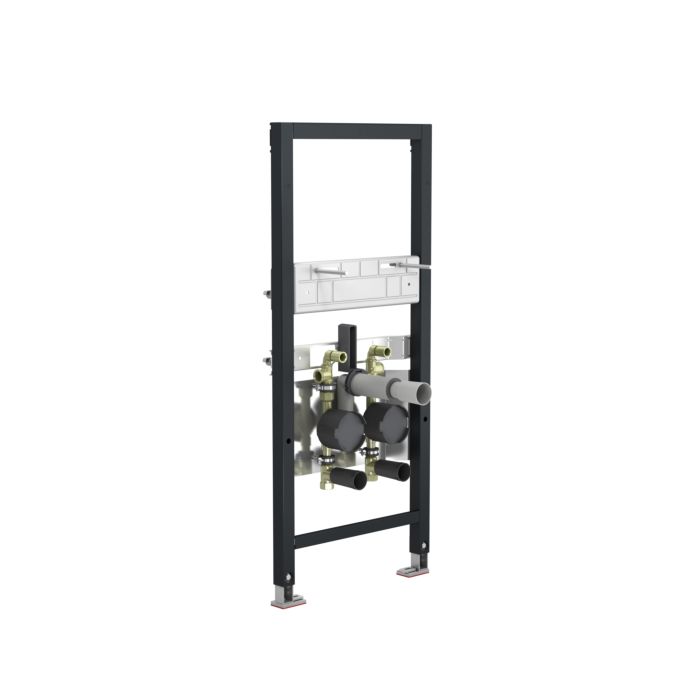

Mepa nextVIT washbasin element 521025

  • Pre-assembled mounting element for single-hole washbasin mixer
  • for installing measuring capsules KOAX G 2
  • for drywall installation
  • for individual installation in front of a solid or lightweight stud wall
  • for rail mounting in front of a solid or lightweight stud wall
  • self-supporting mounting frame
  • suitable for cladding with gypsum fiber or gypsum plasterboard
  • powder-coated profile frame
  • Height-adjustable footrests 1930 -240 mm with integrated slip resistance
  • Base plates can be rotated (compensate for drilling errors, depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
  • Center and meter markings for exact alignment of the axis center and installation height of the element
  • Tool-free, height-adjustable, non-slip connecting traverses for water connection and water meter sections/drain/ceramic fastening
  • Water meter section made of brass (for vertical Plumbing distance between the sections approx. 150 mm, pre-assembled and leak-tested, connections on the primary side G3/4, on the secondary side G1/2 for common flush-mounted water meter makes up to Q3 = 2.5 m³/h according to MID)
  • Hole spacing ceramic fastening 150-240 mm
  • Mounting plates for holding 2 brass water meter sections
  • Height-adjustable drain arch holder
  • HT siphon bend DN 50/50 with rubber sleeve NW 30/50 (2-way depth adjustable)
  • Construction protection caps for Ventile and water meter bases
