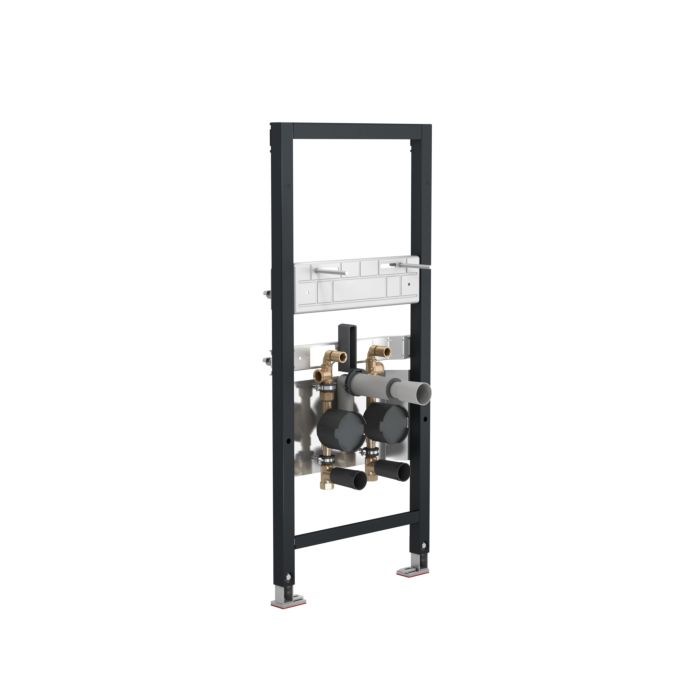

Mepa nextVIT washbasin element 521026 system height 120 cm, for single-hole fitting, water meter section WZ2 gunmetal

Mepa nextVIT washbasin element 521026

• Pre-assembled mounting element for single-hole washbasin mixer
• for installing measuring capsules KOAX G 2
• for drywall installation
• for individual installation in front of a solid or lightweight stud wall
• for rail mounting in front of a solid or lightweight stud wall
• self-supporting mounting frame
• suitable for cladding with gypsum fiber or gypsum plasterboard
• powder-coated profile frame
• Height-adjustable footrests 1930 -240 mm with integrated slip resistance
• Base plates can be rotated (compensating for drilling errors
• Depth suitable for installation in UW profile UW 50 and UW 75 and MEPA-C profile)
• Center and meter markings for exact alignment of the axis center and installation height of the element
• Tool-free, height-adjustable, non-slip connecting traverses for water connection and water meter sections/drain/ceramic fastening
• Water meter section for vertical Plumbing (distance of the sections approx. 150 mm, pre-assembled and leak-tested, connections on the primary side G3/4, secondary side G1/2 for common flush-mounted water meter makes up to Q3 = 2.5 m³/h according to MID)
• Hole spacing ceramic fastening 150-240 mm
• Mounting plates for holding 2 brass water meter sections
• Height-adjustable drain arch holder
• HT siphon bend DN 50/50 with rubber sleeve NW 30/50 (2-way depth adjustable)
• Construction protection caps for Ventile and water meter bases
