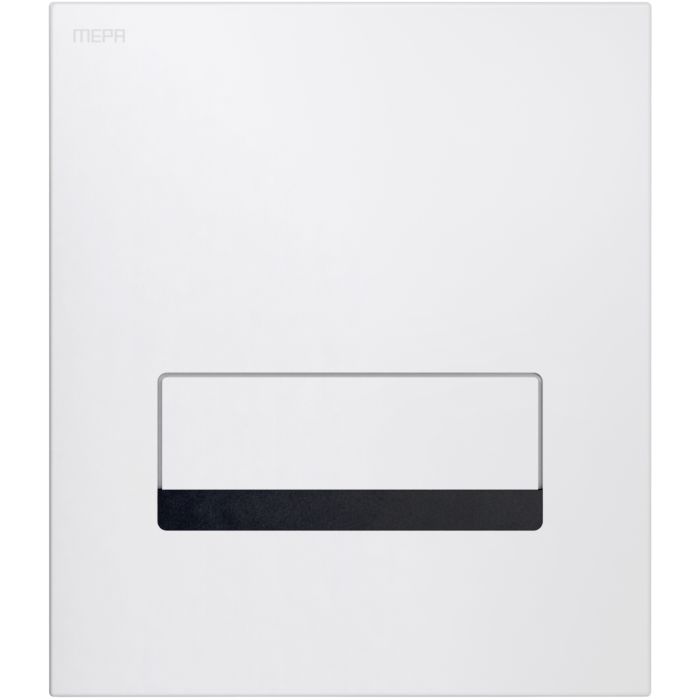

Mepa Sanicontrol urinal flushing system 718281 white, IR, battery operation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 718281
Details
Mepa Sanicontrol urinal flushing system 718281
- for automatic flush actuation of urinals
- for MEPA nextVIT urinal element
- for MEPA urinal installation set
- Front panel with security screw to protect against theft
- 150x131x10mm
- Zinc die-cast
- vandal proof
- Infrared proximity electronics
- Flushing time adjustable from 2-10 s
- Factory setting 6 s
- Pre-purge adjustable from 1930 -6 s
- 1930 s
- periodic hygiene flushing (adjustable in 10 interval levels from 24-240 h)
- Adjustable number of flushes from 2000 -10 flushes per hygienic flushing interval
- automatic flush volume optimization
- Response range adjustable (factory setting approx. 500 mm in front of the wall)
- Response range switchable to Urinale with cover (close range function)
- Rinse stop function for cleaning purposes
- Reset function to restore the factory settings
- Settings via membrane keyboard and IR remote control
- Battery operation 6 VDC via internal battery module
- non-interchangeable plug connections
- Degree of protection IP 44
- Working pressure 1930
- 2-10 bars
- Flow 1930
- 3 l/s at flow pressure 2000 bar / 1930
- 5 l/s at a flow pressure of 2 bar
- Scope of delivery: 1x urinal front panel with IR electronics and membrane keyboard
- 1x mounting frame for urinal front panel
- 1x battery module
- 1x lithium battery 6 V type CR-P2
- 1x solenoid valve 6 VG 3/4 A with strainer
- 2x flat gaskets G 3/4
- 1x IR remote control SC 900 and fastening material
