MHG oil burner 95.20100-0542 RE 2000 .26 HK-0542, 22-26 kW, 2000 -step
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 500
Details

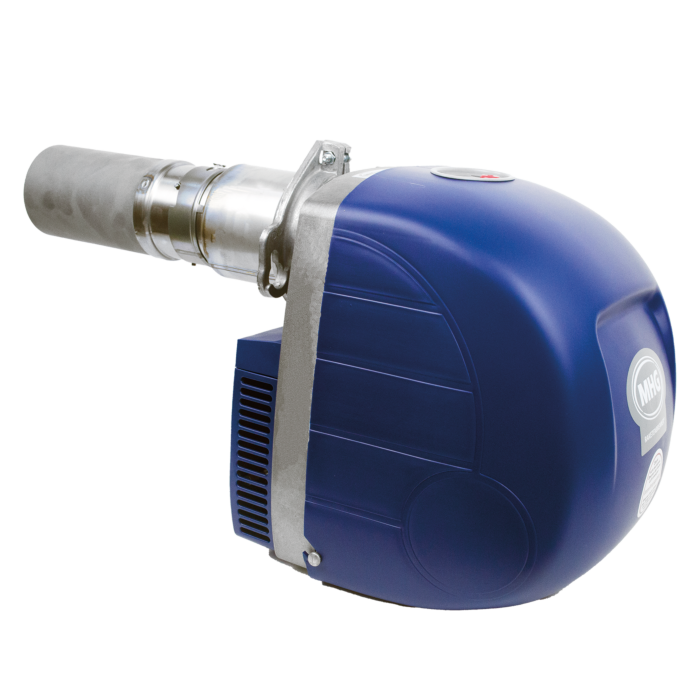

MHG oil burner 95.20100-0542
- 2000 -step with ceramic tube and ceramic-coated mixing system
- for EL heating oil according to DIN 51603 / 2000 or for EL low-sulfur heating oil or low-sulfur EL heating oil with up to 5 percent FAME according to DIN EN 14213 or rapeseed oil according to DIN V 51605
- for boiler output 15-19 kW
- CE marking
- DIN EN 267
- Weight about 12 kg
- 1930 power 1930
- 09 kW
- 2000 circuit with pre-heating and pre-ventilation
- approved for intermittent operation on cast iron / steel boilers
- consisting of: volute casing (light metal die-cast)
- Bathroom ceramics tube ( Bathroom ceramics )
- Combustion system with thermodynamic mixture preparation (noise-dampened)
- Housing cover with functional parts
- Electric motor with operating capacitor
- Oil pump with built-in solenoid valve
- directly coupled
- High performance impeller
- Automatic oil burner control for intermittent operation according to DIN EN 230
- for WLE version according to DIN 4794/2
- Flame control
- Ignition transformer
- Degree of interference <N
- Ignition electrodes (plug-in ignition cables)
- Nozzle holder with pressure spring
- Oil preheater with release thermostat
- Cover hood
- Connector according to DIN 4791
- Oil hoses with union nut
- Rp 3/8 x 1200 mm
- Clamping flange DIN EN 226
- Burner seal u. Connection screws
- Quick release fastener and service suspension
- Brenner has been tried and tested
- Mains connection: 230 V.
- 50 Hz
- Power consumption in operation about 185 W.
