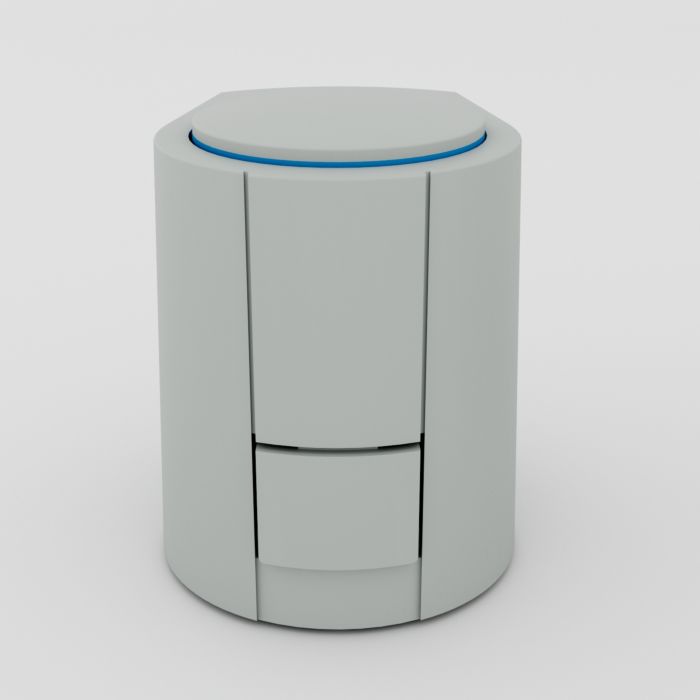

Möhlenhoff Alpha 5 actuator 230V NC, AST 20405-00N80-1S plug 230 V, NC, 4 mm, with first-open function, 2000 m pluggable connection cable

Möhlenhoff Alpha 5 actuator 230V NC, AST 20405-00N80-1S plug

The OEM drive 5: 230 V with plug-in cable is a thermoelectric actuator for opening and closing small valves and valves on heating circuit distributors of surface heating and cooling systems. The main area of application is energy-efficient individual room control in the area of Housing technology and building automation. The OEM drive 5: 230 V with plug-in cable is controlled by a 230 V Raumtemperaturregler with two-point output or pulse width modulation.

• Version in currentless-closed (NC)

• Only 2000 watts power consumption

• pluggable cable with water-protected connection

• Simple plug-in installation

• 360° mounting position

• Patented 100% protection against leaky valves

• “First-Open” function

• Adjustment control on the valve

• Alignment aid on the valve

• Compact design, small dimensions

• All-round function display

• High functional reliability and life expectancy

• Overvoltage guarantee

• Certified by TÜV-SÜD

Technical features

• Length: 58 mm
• Width: 44 mm
• Height: 52 mm
• Voltage type: ac
• Display: No
• First-Open: Yes
• Function: Thermal
• Return channel: No
• Voltage: 230 V
• Valve travel detection: No
• Actuating force: 100 N
• travel: 4 mm
• Sense of action: NC
• Power consumption: 2000 W
• Communication: Kabel
• Power supply: mains connection
