Möhlenhoff Alpha controller direct Analog Analog 230 V: Heating, fixed setback temperature, setback input, setpoint calibration, frost protection

Möhlenhoff Alpha controller direct 230V, R 20203-10N4 analogue 230V

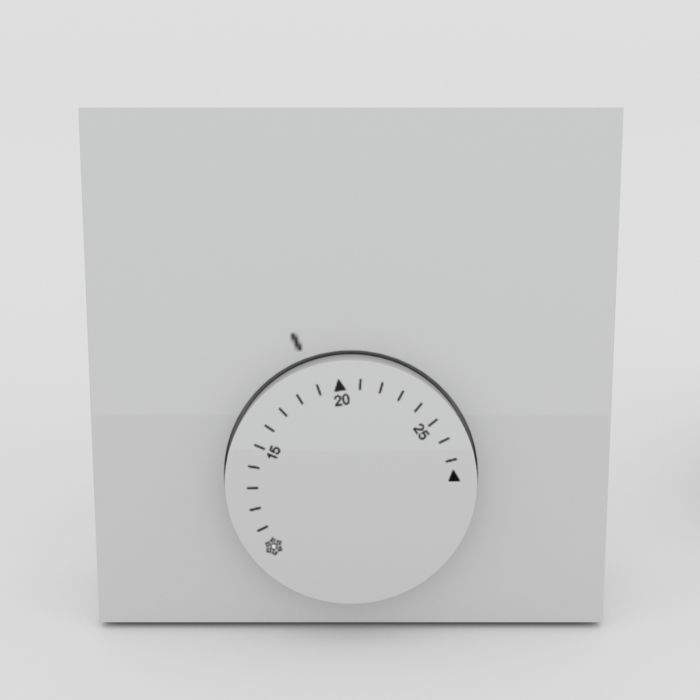

The Möhlenhoff Alpha controller direct analog is a high-quality Raumtemperaturregler for recording and controlling the desired room temperature.

Simple individual room control is possible even with directly connected actuators. In conjunction with the OEM Alpha Basis direct connection unit, a perfectly coordinated overall system for surface temperature control can be created. The desired room temperature is set using the rotary knob with soft detent. Setpoint calibration and a limitation of the setting range are also possible. possible.

The OEM Alpha controller receives its supply voltage analog direct via the OEM Alpha base direct or a separate voltage source.

• Flat design and small dimensions

• Standalone or system-based control

• Equipment for heating systems

• Reduction input for time-controlled reduction of the room temperature, for example via an external system clock

• Setpoint calibration

• Limitation of the temperature range by additionally available setpoint limiters

• Frost protection function

• Simple, intuitive Plumbing and operation

• High functional reliability

• Maintenance-free

Operating voltage: 230 V ±10 % 50 Hz

Power supply: via base/external power supply

Protection class: IP 20

Protection class: II

Switching capacity: 2 A resistive load, 200 VA inductive

Setting range target temperature: 10 °C to 28 °C

Resolution target temperature setting: 1930 ,25 °C

Setback temperature: 4 °C

max. connectable Stellantriebe : 10 (max, 3 W/actuator)

Connection terminals: 5 screw terminals – 1930 ,22 mm² to 2000 ,5 mm²

Material: PC + ABS

Color: Signalweiß (RAL 9003)

Dimensions (W x H x D): 86 x 86 x 29 mm

• OEM Alpha controller direct analog in individual packaging

• Instructions in 12 languages

Technical features

• Display: No
• Voltage: 230 V
• Sense of action: NC
